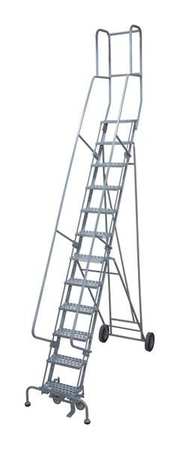

Original catalog photograph. Confirm the selected model and configuration with your quote.
| Load Capacity | 450 lb. |
|---|---|
| Platform Height | 130″ |
| Overall Height | 172″ |
| Number of Steps | 13 |
| Platform Width | 16″ |
| Platform Depth | 20″ |
| Material | Steel |
| Assembled/Unassembled | Unassembled |
| Step Depth | 7″ |
| Climbing Angle | 59 Degrees |
| Color | Gray |
| Step Tread | Serrated |
| Overall Width | 40″ |
| Standards | OSHA 1910.29 and ANSI A14.7 |
| Bottom Width | 40″ |
| Handrails Included | Yes |
| Handrail Height | 42″ |
| Step Width | 16″ |
| Base Depth | 198″ |
| Finish | Powder Coated |
| Rear Exit | No |
| Item | Rolling Ladder |
| Country of Origin (subject to change) | United States |
Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.
PRODUCT INFORMATION
Rolling Ladder, Material Steel, Platform Height 130 In., Handrails Included Yes, Handrail Height 42 In., Overall Height 172 In., Number of Steps 13, Unassembled, Load Capacity 450 lb., Step Tread Serrated, Platform Depth 20 In., Platform Width 16 In., Bottom Width 40 In., Base Depth 198 In., Overall Width 40 In., Climbing Angle 59 Degrees , Step Depth 7 In., Step Width 16 In., Finish Powder Coated, Color Gray, Standards OSHA 1910.29 and ANSI A14.7, Rear Exit No
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Load Capacity: 450 lb.; Platform Height: 130″; Overall Height: 172″. Confirm the complete selected configuration before ordering.
Include the product name and SKU G3487998, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.
Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
