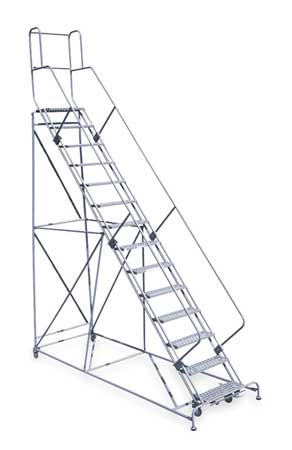

Original catalog photograph. Confirm the selected model and configuration with your quote.
| Load Capacity | 800 lb. |
|---|---|
| Platform Height | 140″ |
| Overall Height | 182″ |
| Number of Steps | 14 |
| Platform Width | 24″ |
| Platform Depth | 24″ |
| Material | Steel |
| Assembled/Unassembled | Unassembled |
| Step Depth | 7″ |
| Color | Gray |
| Standards | OSHA 1910.29 and ANSI A14.7 |
| Handrails Included | Yes |
| Handrail Height | 42″ |
| Rear Exit | No |
| Item | Rolling Ladder |
| Ladder Actuation | Step Lock |
| Green Environmental Attribute | Minimum 30% Post-Consumer Recycled Content |
| Base Depth | 146″ |
| Step Width | 24″ |
| Finish | Powder Coated |
| Includes | 2-1/2″ Rubber Pads |
| Step Tread | Expanded Metal |
| Climbing Angle | 50 Degrees |
| Bottom Width | 42″ |
| Country of Origin (subject to change) | United States |
Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.
PRODUCT INFORMATION
Rolling Ladder, Material Steel, Platform Height 140 In., Handrails Included Yes, Handrail Height 42 In., Overall Height 182 In., Number of Steps 14, Unassembled, Load Capacity 800 lb., Step Tread Expanded Metal, Platform Depth 24 In., Platform Width 24 In., Bottom Width 42 In., Base Depth 146 In., Climbing Angle 50 Degrees , Step Depth 7 In., Step Width 24 In., Ladder Actuation Step Lock, Finish Powder Coated, Color Gray, Standards OSHA 1910.29 and ANSI A14.7, Includes 2-1/2 In. Rubber Pads
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Load Capacity: 800 lb.; Platform Height: 140″; Overall Height: 182″. Confirm the complete selected configuration before ordering.
Include the product name and SKU G9929157, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.
Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
