| Model / reference | Capacity | Min. fork height | Max. fork height | Power unit | Battery | Net weight | Option platform |
|---|---|---|---|---|---|---|---|
| EJ4085S | 400kg | 880 lbs | 85mm | 3.1” | 850mm | 33” | 0.8 KW | 12V/80Ah | 117kg | 260lbs | LPS20 |
| EJ1205S | 400kg | 880 lbs | 85mm | 3.1” | 1200mm | 47” | 0.8 KW | 12V/80Ah | 122kg | 268lbs | LPS20 |
| EJ4150S | 400kg | 880 lbs | 85mm | 3.1” | 1500mm | 59” | 0.8 KW | 12V/80Ah | 127kg | 279lbs | LPS20 |
| EJ4180S | 400kg | 880 lbs | 85mm | 3.1” | 1800mm | 70” | 0.8 KW | 12V/80Ah | 138kg | 304lbs | LPS20 |
| Documented model configurations | 4 |
|---|---|
| Capacity | 400kg | 880 lbs |
| Min. fork height | 85mm | 3.1” |
| Power unit | 0.8 KW |
| Battery | 12V/80Ah |
| Option platform | LPS20 |
| Catalog feature / option | Option platform SUS304 LPS20 available Stainless Steel Light Duty Stacker 880 lbs Capacity |
Source: 2019 sanitary equipment catalog, PDF page 30. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

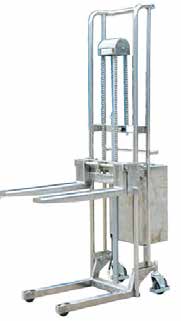

880 lb Electric Stainless Steel Stackers — EJ Series is presented here with the configurations documented in the 2019 sanitary equipment catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: SUS304 material, good for corrosive acids application; Easier and faster lifting operation; Service free battery; Option platform SUS304 LPS20 available Stainless Steel Light Duty Stacker 880 lbs Capacity.
The source describes standard and custom equipment. Confirm the current construction, control system, finish, installation details and selected operating limits with your quote.
Reference: 2019 sanitary equipment catalog, PDF page 30. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2019 sanitary equipment catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
