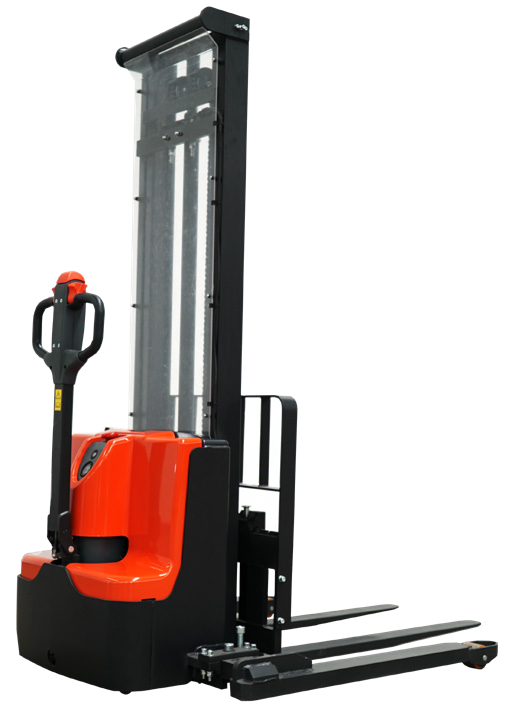

Adjustable Duplex-Mast Lithium Stacker — 22LSL138 — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Model / referenceWEIGHT CAPACITYLIFT HEIGHT MAXFORK LENGTHFORK WIDTHLOWERED MAST HEIGHTFREE LIFT HEIGHTEXTENDED MAST HEIGHTHEIGHT OF TILLER IN DRIVEHEIGHT LOWEREDOVERALL LENGTHOVERALL WIDTHWEIGHTPOWER - BATTERIES
BALLYPAL22LSL1382200138”45”4”88”135”158”49” MAX1.6”71”46” TO 58”1,6552 X 12V
WEIGHT CAPACITY2200
LIFT HEIGHT MAX138”
FORK LENGTH45”
FORK WIDTH4”
LOWERED MAST HEIGHT88”
FREE LIFT HEIGHT135”
EXTENDED MAST HEIGHT158”
HEIGHT OF TILLER IN DRIVE49” MAX
HEIGHT LOWERED1.6”
OVERALL LENGTH71”
OVERALL WIDTH46” TO 58”
WEIGHT1,655
POWER - BATTERIES2 X 12V
Catalog feature / optionCapacity = 2200 lbs.
Catalog feature / optionOverall Fork Width 10” to 32” (Adjustable)

Source: 2026 material handling catalog, PDF page 10. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Adjustable Duplex-Mast Lithium Stacker — 22LSL138 is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Duplex mast; Built- in charger; Battery discharge indicator with lift lock out for improved battery life; Adjustable straddle leg design for diverse pallet designs and improved stability; 3 points design with centered drive for maximum stability and traction Travel Speed 2.3/2.5 mph; Max Gradeability= 5% Laden and 10% Unladen; Capacity = 2200 lbs.; Overall Fork Width 10” to 32” (Adjustable); Travel Speed = 23/25 mph.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 10. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
