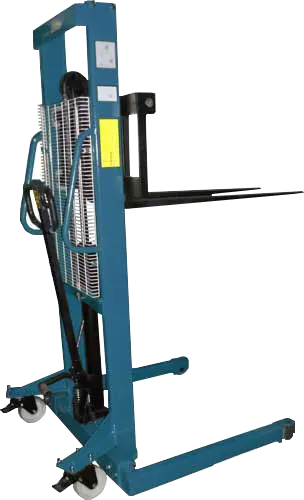

Adjustable-Fork Walkie Stackers — MXSA Series — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Model / referenceVERTICAL TRAVELCAPACITYHEIGHT / DOWNHEIGHT / UPSTRADDLE / IDHEIGHT / STRADDLE / WFORKS / LHEIGHT / FORKS / WHEIGHT / FORKS / ODMAST HEIGHT / DOWNHEIGHT / MAST HEIGHT / UP
BM-MXSA-2200-62H59”22003”62”38”/42”/46”/50”6”42”4”8.5”-32”82”82”
VERTICAL TRAVEL59”
CAPACITY2200
HEIGHT / DOWN3”
HEIGHT / UP62”
STRADDLE / ID38”/42”/46”/50”
HEIGHT / STRADDLE / W6”
FORKS / L42”
HEIGHT / FORKS / W4”
HEIGHT / FORKS / OD8.5”-32”
MAST HEIGHT / DOWN82”
HEIGHT / MAST HEIGHT / UP82”
Catalog feature / optionAdjustable forks

Source: 2026 material handling catalog, PDF page 38. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Adjustable-Fork Walkie Stackers — MXSA Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Adjustable forks; Adjustable straddle legs; Ergonomic handle; 3 position control lever; Hydraulic pump handle; Hydraulic foot pump Entrapped Rollers F P P h H dl Ergonomic Handle Rollers for the fork carriage are entrapped within a steel “C” channel providing secure placement of loads. Comfortable handle with “lift”, “lower” and “neutral” lever. Pumps up the fork carriage similar to a pallet jack..

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 38. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
