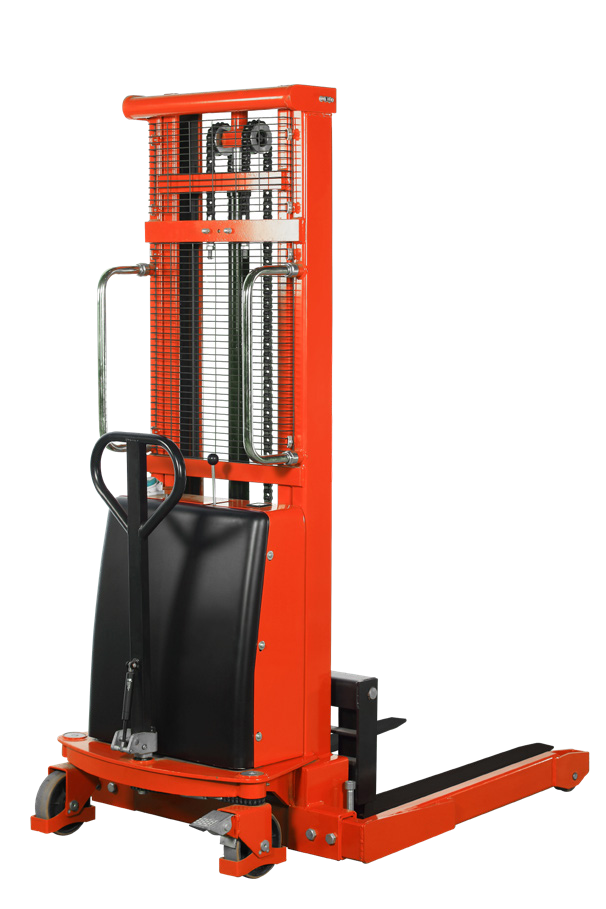

Adjustable-Leg Lithium Stackers — 22AG Series — catalog equipment photograph

Open an image to inspect its original detail.

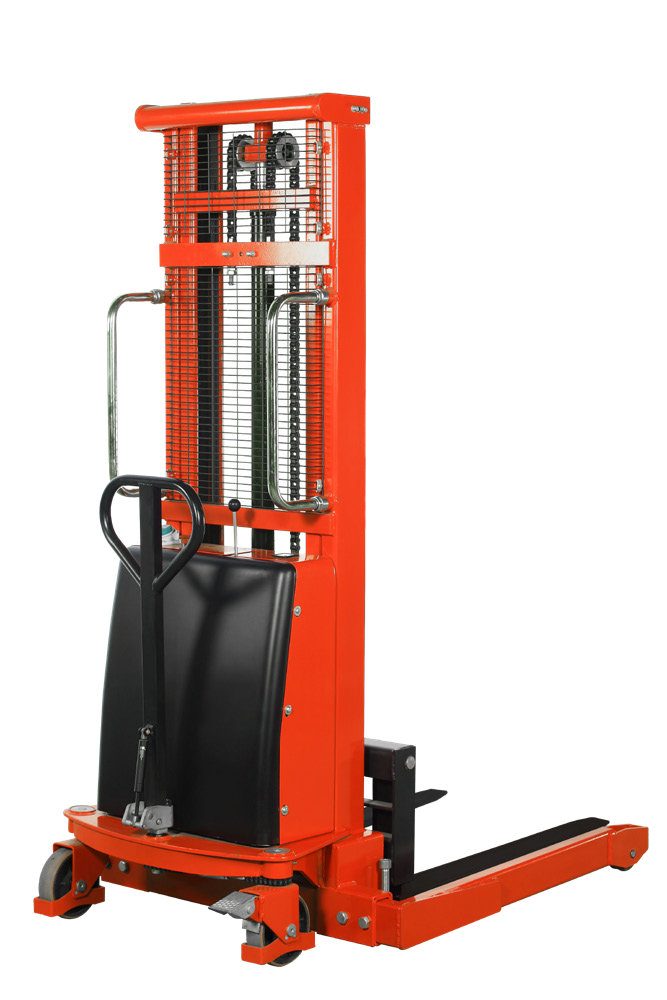

Adjustable-Leg Lithium Stackers — 22AG Series — catalog equipment photograph

Specifications & options

Model / referenceWEIGHT CAPACITYLIFT HEIGHT MAXLIFT HEIGH MINT FORK LENGTHFORK WIDTHBASE LEGS (OD)OVERALL LENGTHOVERALL WIDTHOVERALL HEIGHTWEIGHTPOWER - BATTERIES
BALLYPAL22AG63220063”2 1/8”42”4”44” TO 55”66.5”44” TO 55”80”8301 X 12V
BALLYPAL22AG1382200138”2 1/8”42”4”44” TO 55”66.5”44” TO 55”89 1/2”11201 X 12V
Documented model configurations2
WEIGHT CAPACITY2200
LIFT HEIGH MIN2 1/8”
T FORK LENGTH42”
FORK WIDTH4”
BASE LEGS (OD)44” TO 55”
OVERALL LENGTH66.5”
OVERALL WIDTH44” TO 55”
POWER - BATTERIES1 X 12V
Catalog feature / optionCapacity = 2200 lbs.
Catalog feature / optionForks adjust from side to side to accommodate skid widths
Catalog feature / optionAdjustable forks lower to the minimum height 2 1/8”
Catalog feature / optionDistance between fork 8 1/4” to 28 1/2” (Adjustable)

Source: 2026 material handling catalog, PDF page 9. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Adjustable-Leg Lithium Stackers — 22AG Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Capacity = 2200 lbs.; Forks adjust from side to side to accommodate skid widths; Adjustable forks lower to the minimum height 2 1/8”; Distance between fork 8 1/4” to 28 1/2” (Adjustable); Straddle legs adjust to three positions; Sturdy mast made of rolled U-shapes; Powerful lift motor 21 HP.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 9. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
