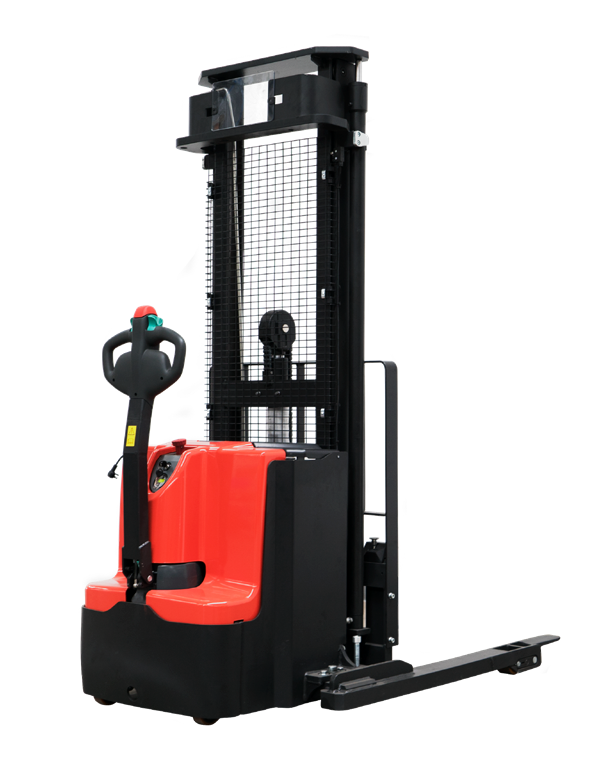

Adjustable Triplex-Mast Lithium Stacker — 35TSL157 — catalog equipment photograph

Open an image to inspect its original detail.

Adjustable Triplex-Mast Lithium Stacker — 35TSL157 — catalog equipment photograph

Specifications & options

Model / referenceWEIGHT CAPACITYLIFT HEIGHT MAXFORK LENGTHFORK WIDTHLOWERED MAST HEIGHTFREE LIFT HEIGHTEXTENDED MAST HEIGHTHEIGHT OF TILLER IN DRIVEHEIGHT LOWEREDOVERALL LENGTHOVERALL WIDTHWEIGHTPOWER - BATTERIES
BALLYPAL35TSL1573500157”45”4.7”75”52”176”56” MAX2”82”46” TO 58”3,26324V
WEIGHT CAPACITY3500
LIFT HEIGHT MAX157”
FORK LENGTH45”
FORK WIDTH4.7”
LOWERED MAST HEIGHT75”
FREE LIFT HEIGHT52”
EXTENDED MAST HEIGHT176”
HEIGHT OF TILLER IN DRIVE56” MAX
HEIGHT LOWERED2”
OVERALL LENGTH82”
OVERALL WIDTH46” TO 58”
WEIGHT3,263
POWER - BATTERIES24V
Catalog feature / optionTwo powerful 12Volt 85Ah batteries
Catalog feature / optionCapacity = 3500 lbs.

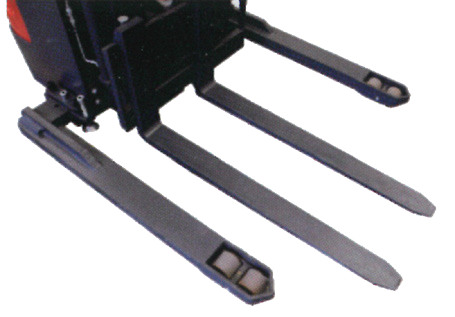

Catalog feature / optionOverall Fork Width 10” to 29” (Adjustable)

Source: 2026 material handling catalog, PDF page 10. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Adjustable Triplex-Mast Lithium Stacker — 35TSL157 is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Proportional lifting allows for efficient and safe lifting of nay product at any lift speed.; State of the art components; Mesh protection for safety as well as great visibility during operation; Robust chassis and thick apron protect the truck and its components; Three stage mast; Two powerful 12Volt 85Ah batteries; Straddle leg width range 46” x 58” Straddle Leg Adjustable straddle leg design, suitable for diverse pallet sizes and more stability Travel Speed = 2.3/2.5 mph; Max Gradeability= 5% Laden and 10% Unladen; Capacity = 3500 lbs.; Overall Fork Width 10” to 29” (Adjustable); Travel Speed = 3.5/ 3.7 mph; Max Gradeability= 6% Laden and 12% Unladen.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 10. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
