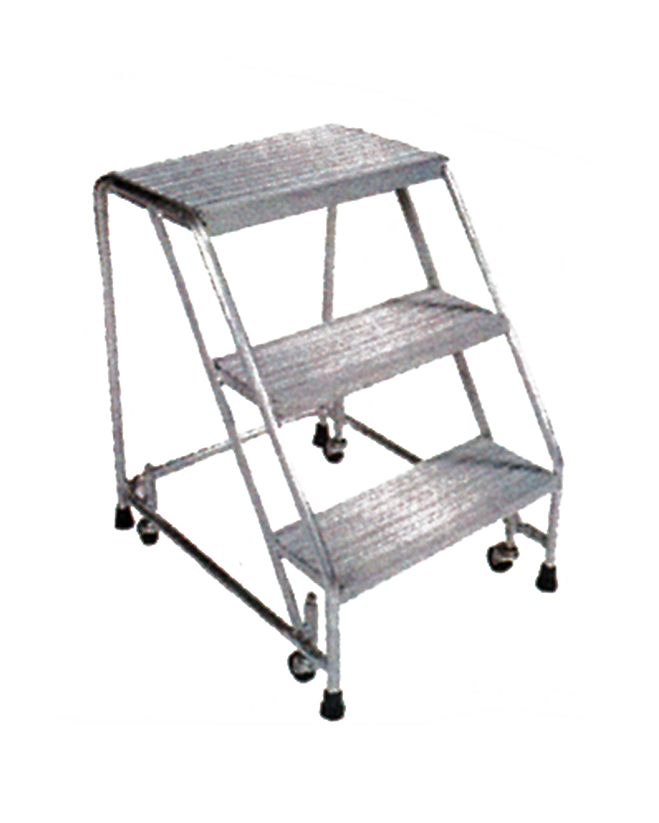

Ballymore manufacturer image listed for A7SH30. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.
| Model / reference | Catalog configuration | STEPS INCLUDING TOP STEP | HEIGHT INCHES / TOP STEP | HEIGHT INCHES / OVER ALL | BASE W” x L” / OVER ALL | WGT Lbs. / OVER ALL |
|---|---|---|---|---|---|---|
| A2S | SPRING LOADED CASTERS | 2 STEP NO RAILS | 20 | 20 | 20 x 19 | 15 |
| A3S | SPRING LOADED CASTERS | 3 STEP NO RAILS | 30 | 30 | 20 x 25 | 20 |
| A4S | SPRING LOADED CASTERS | 4 STEP NO RAILS | 40 | 40 | 20 x 31 | 29 |
| A2SH | SPRING LOADED CASTERS | 2 STEP | 20 | 50 | 20 x 19 | 21 |
| A2SH-TR | TILT & ROLL | 2 STEP | 20 | 50 | 20 x 19 | 21 |
| A3SH | SPRING LOADED CASTERS | 3 STEP | 30 | 60 | 20 x 25 | 27 |
| A3SH-TR | TILT & ROLL | 3 STEP | 30 | 60 | 20 x 25 | 27 |
| A4SH | SPRING LOADED CASTERS | 4 STEP | 40 | 70 | 20 x 31 | 34 |
| A4SH-TR | TILT & ROLL | 4 STEP | 40 | 70 | 20 x 31 | 34 |
| A2S30 | SPRING LOADED CASTERS | 2 STEP NO RAILS | 20 | 20 | 30 x 19 | 22 |
| A3S30 | SPRING LOADED CASTERS | 3 STEP NO RAILS | 30 | 30 | 30 x 25 | 28 |
| A4S30 | SPRING LOADED CASTERS | 4 STEP NO RAILS | 40 | 40 | 30 x 31 | 35 |
| A2SH30 | SPRING LOADED CASTERS | 2 STEP | 20 | 50 | 30 x 19 | 22 |
| A2SH30-TR | TILT & ROLL | 2 STEP | 20 | 50 | 30 x 19 | 22 |
| A3SH30 | SPRING LOADED CASTERS | 3 STEP | 30 | 60 | 30 x 25 | 34 |
| A3SH30-TR | TILT & ROLL | 3 STEP | 30 | 60 | 30 x 25 | 34 |
| A4SH30 | SPRING LOADED CASTERS | 4 STEP | 40 | 70 | 30 x 31 | 41 |
| A4SH30-TR | TILT & ROLL | 4 STEP | 40 | 70 | 30 x 31 | 41 |
| A5SH30 | SPRING LOADED CASTERS | 5 STEP | 50 | 80 | 30 x 37 | 49 |
| A5SH30-TR | TILT & ROLL | 5 STEP | 50 | 80 | 30 x 37 | 49 |
| A6SH30 | SPRING LOADED CASTERS | 6 STEP | 60 | 90 | 30 x 43 | 60 |
| A6SH30-TR | TILT & ROLL | 6 STEP | 60 | 90 | 30 x 43 | 60 |
| A7SH30 | SPRING LOADED CASTERS | 7 STEP | 70 | 100 | 30 x 49 | 67 |
| A7SH30-TR | TILT & ROLL | 7 STEP | 70 | 100 | 30 x 49 | 67 |
| Documented model configurations | 24 |
|---|---|
| Catalog feature / option | 350 LB. CAPACITY |
| Catalog feature / option | Solid ribbed tread or heavy duty serrated grating |
Source: 2026 ladder and access catalog, PDF page 22. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Aluminum Spring-Loaded Rolling Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: 350 LB. CAPACITY; All welded; Aluminum mill finish industrial grade welds; Ideal for use in banks, libraries & hospitals and wash down applications lightweight design; Non-magnetic and non-sparking; Paint-free for food and pharmaceutical applications; Solid ribbed tread or heavy duty serrated grating.
Model and option notes: 24” WIDE STEP; A2S* - 2 STEP NO RAILS 20 20 20 x 19 15; A3S* - 3 STEP NO RAILS 30 30 20 x 25 20; A2S30* - 2 STEP NO RAILS 20 20 30 x 19 22; A3S30* - 3 STEP NO RAILS 30 30 30 x 25 28.
Reference: 2026 ladder and access catalog, PDF page 22. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
