| Model / reference | Catalog configuration | Panel Configuration / Gray | Casters / Gray | Steel Gauge / Gray | Capacity (lb) / Gray | Dimensions L x W x H (in) / Gray | Weight (lb) / Gray |
|---|---|---|---|---|---|---|---|
| F89552B | Blue | Bin: 2 Louvered | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 36 x 30 x 62 | 140 |
| F89552R | Red | Bin: 2 Louvered | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 36 x 30 x 62 | 140 |
| F89552 | Gray | Bin: 2 Louvered | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 36 x 30 x 62 | 140 |
| F89548B | Blue | Bin: 2 Louvered | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 48 x 30 x 62 | 170 |
| F89548R | Red | Bin: 2 Louvered | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 48 x 30 x 62 | 170 |
| F89548 | Gray | Bin: 2 Louvered | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 48 x 30 x 62 | 170 |
| F89550B | Blue | Tool: 2 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 36 x 30 x 62 | 130 |
| F89550R | Red | Tool: 2 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 36 x 30 x 62 | 130 |
| F89550 | Gray | Tool: 2 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 36 x 30 x 62 | 130 |
| F89546B | Blue | Tool: 2 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 48 x 30 x 62 | 160 |
| F89546R | Red | Tool: 2 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 48 x 30 x 62 | 160 |
| F89546 | Gray | Tool: 2 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 48 x 30 x 62 | 160 |
| F89551B | Blue | Bin & Tool: 1 Louvered, 1 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 36 x 30 x 62 | 135 |
| F89551R | Red | Bin & Tool: 1 Louvered, 1 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 36 x 30 x 62 | 135 |
| F89551 | Gray | Bin & Tool: 1 Louvered, 1 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 36 x 30 x 62 | 135 |
| F89547B | Blue | Bin & Tool: 1 Louvered, 1 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 48 x 30 x 62 | 165 |
| F89547R | Red | Bin & Tool: 1 Louvered, 1 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 48 x 30 x 62 | 165 |
| F89547 | Gray | Bin & Tool: 1 Louvered, 1 Pegboard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 1,000 | 48 x 30 x 62 | 165 |
| Documented model configurations | 18 |
|---|---|
| Casters / Gray | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel |
| Steel Gauge / Gray | 12 |
| Capacity (lb) / Gray | 1,000 |
Source: 2025 storage and handling catalog, PDF page 21. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

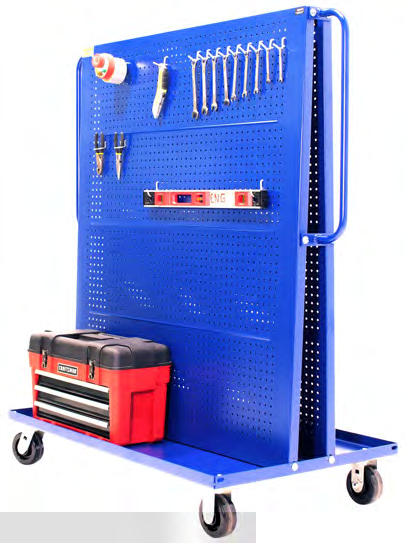

Bin and Tool A-Frame Carts is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Customizable mobile solution for organizing tools and supplies.; Back-to-back panels: louvered or pegboard options.; Louvered panels used to hang plastic storage bins.; Pegboard panels used with hooks for hanging tools and supplies.; 11” of deck space on each side of panel with 1½” lip to keep items secure.; Accessory options include end panels and bins.; Premium powder coat paint finish in gray, blue, or red.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 21. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
