| Model / reference | Capacity (cu ft) | Style | Wheels | Steel Gauge | Dimensions L x W x H (in) | Capacity (lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| F85056A9 | 9 | 3-Wheel - Single Taper | (3) 8" Rubber: 2 Rigid, 1 Locking Swivel | 14 | 48 x 24 x 39” | 1,000 | 135 |
| F85096A1 | 11 | 3-Wheel - Dual Taper | (3) 8" Rubber: 2 Rigid, 1 Locking Swivel | 14 | 66 x 24 x 39 | 1,500 | 145 |
| F85142A5 | 14 | 4-Wheel - Dual Taper | (4) 8” Rubber: 2 Rigid, 2 Locking Swivel | 14 | 66 x 30 x 39 | 2,000 | 175 |
| F85161A1 | 17 | 4-Wheel - Dual Taper | (4) 8” Rubber: 2 Rigid, 2 Locking Swivel | 14 | 66 x 36 x 39 | 2,000 | 185 |
| Documented model configurations | 4 |
|---|---|
| Steel Gauge | 14 |
| Catalog feature / option | Tapered edges for easy loading and unloading. |
Source: 2025 storage and handling catalog, PDF page 27. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

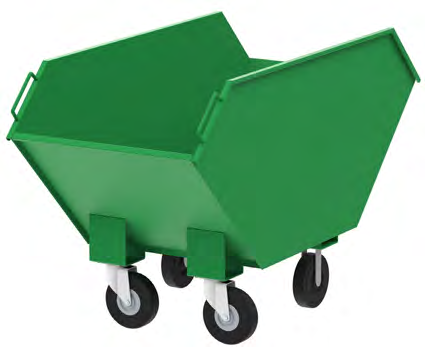

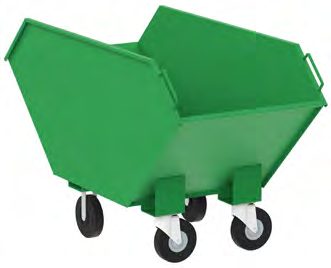

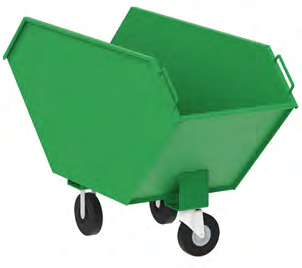

Chip Collection Trucks is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Perfect solution for collecting, storing, and transporting a variety of heavy material or scrap.; Used throughout production, fulfillment, maintenance, and other departments.; Tapered edges for easy loading and unloading.; Dual steel handles for simple handling.; Leak-proof continuous solid welds.; Hemmed top edge provides increased durability.; Premium powder coat paint finish.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 27. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
