| Model / reference | Style | Brake | Fenders | Shoe Size W x D (in) | Wheels | Dimensions W x D x H (in) | Capacity (lb) | Weight (lb) | Frame | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| F83947A7 | Standard | - | - | 16 x 10 | (2) 10” Pneumatic | 21 x 20 x 52 | 600 | 34 | — | — |
| F84009A0 | Standard | Hand Brake | - | 16 x 10 | (2) 10” Pneumatic | 19 x 20 x 51 | 600 | 41 | — | — |
| F83944A0 | Standard | - | Fenders | 16 x 10 | (2) 10” Pneumatic | 21 x 20 x 52 | 600 | 42 | — | — |
| F84008A1 | Standard | Hand Brake | Fenders | 16 x 10 | (2) 10” Pneumatic | 20 x 20 x 51 | 600 | 45 | — | — |
| F83881A5 | Curved Back | - | - | 16 x 10 | (2) 10” Pneumatic | 21 x 20 x 52 | 600 | 33 | — | — |
| F83971A6 | Curved Back | Hand Brake | - | 16 x 10 | (2) 10” Pneumatic | 19 x 20 x 51 | 600 | 38 | — | — |
| F83665A7 | Deluxe | - | - | 22 x 10 | (2) 10” Pneumatic | 22 x 20 x 49 | 600 | 44 | — | — |
| F84800A1 | Standard | - | Fenders | 19 x 10 | (2) 10” Solid Rubber & (2) 6” Rear Swivel Casters | 26 x 33 x 54 | 1,000 | 77 | Standard | Aluminum |
| F84808A3 | Standard | - | Fenders | 19 x 10 | (2) 10” Solid Rubber & (2) 6” Rear Swivel Casters | 26 x 33 x 54 | 1,000 | 91 | Standard | Steel |
| F89699 | Deluxe | Hand Brake | - | 19 x 12 | (2) 121/2” Pneumatic & (2) 6” Rear Swivel Casters | 23 x 37 x 50 | 1,000 | 75 | Standard | Steel |
| F89206 | Deluxe | Hand Brake | - | 19 x 12 | (2) 121/2” Pneumatic & (2) 6” Rear Swivel Casters | 23 x 37 x 62 | 1,000 | 80 | Extended | Steel |
| Documented model configurations | 11 |
|---|
Source: 2025 storage and handling catalog, PDF page 46. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

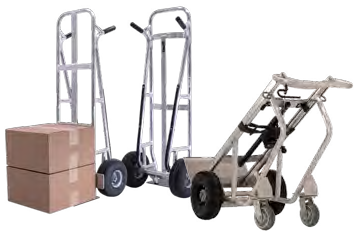

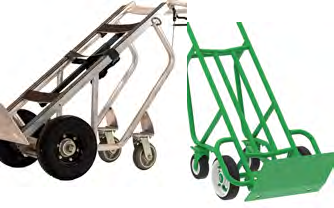

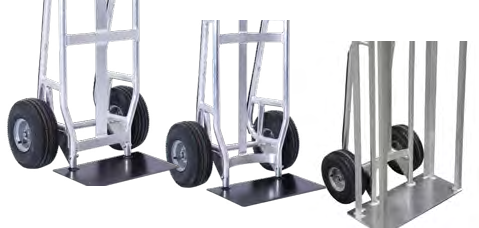

Commercial Delivery Hand Trucks is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Ideal for beverage deliveries and other demanding applications.; Lightweight aluminum with solid welds for superior durability.; Variety of configurations to fit your material handling needs.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 46. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
