| Model / reference | Style | Cylinder Diameter (in) | Brakes | Shoe Size W x D (in) | Wheels | Dimensions W x D x H (in) | Capacity (lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| F81238A9 | Single Cylinder | 9 | Hand Brake | 11 x 4 | (2) 12” Pneumatic | 20 x 16 x 50 | 600 | 41 |
| F81303A9 | Single Cylinder | 14 | Hand Brake | 141/2 x 8 | (2) 12” Pneumatic | 23 x 20 x 50 | 600 | 46 |
| F86070A9 | Double Cylinder | (2) 9 | - | 19 x 113/4 | (2) 12” Pneumatic | 23 x 26 x 50 | 600 | 56 |
| F86065A6 | Double Cylinder | (2) 9 | Hand Brake | 19 x 113/4 | (2) 12” Pneumatic | 23 x 26 x 50 | 600 | 64 |
| Documented model configurations | 4 |
|---|---|
| Wheels | (2) 12” Pneumatic |
| Capacity (lb) | 600 |
Source: 2025 storage and handling catalog, PDF page 48. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

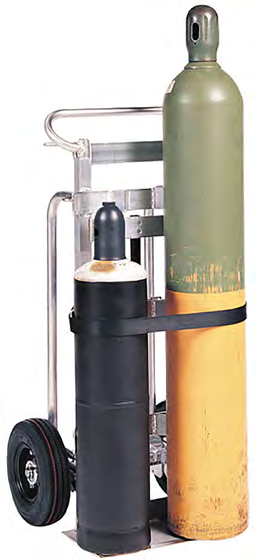

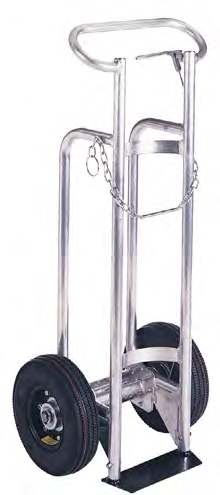

Cylinder Hand Trucks is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Provide safe and secure transportation of gas cylinders.; Lightweight aluminum and spark resistant.; Included safety chain/strap secures tank(s).; Ergonomic loop handle for easy maneuvering.; Hand Brake gives operators added control and safety (select models).; (2) 12” Pneumatic wheels for smooth handling on rugged terrain.; Compatible with tanks up to 14” in diameter (depending on model).; Continuous solid welds for superior durability.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 48. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
