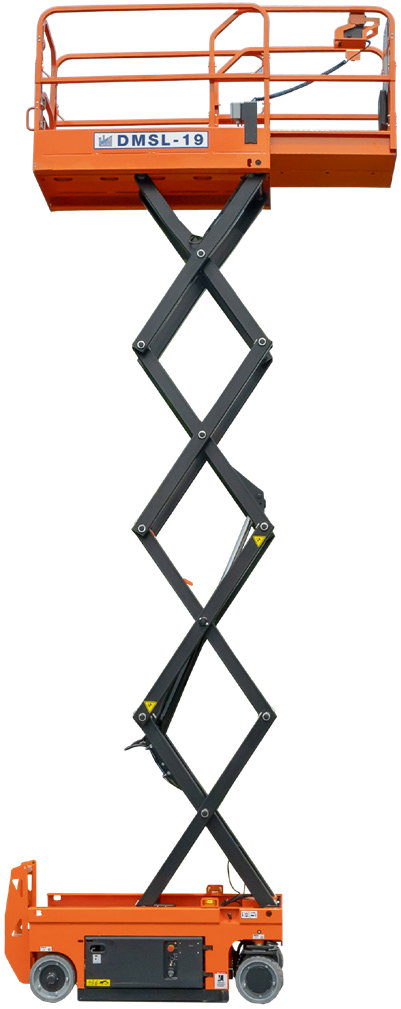

Drivable Personnel Scissor Lifts — DMSL and DSL Series — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Model / reference	Capacity (lb)	Working height	Maximum platform height	Minimum platform height (in)	Platform W x L (in)	Platform extension (in)	Base W x L (in)	Overall height (in)	Weight (lb)	Power
DMSL-19	500	25 ft	19 ft	42	29 x 66	36	30 x 74	86	3164	4-6V

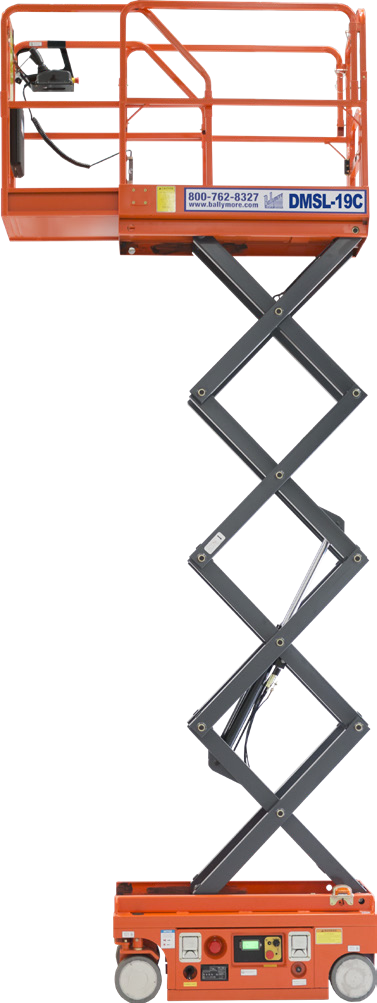

DMSL-19C	500	25 ft	19 ft	42	28 x 53	24	32 x 60	83	2733	2-12V
DMSL-26	500	32 ft	26 ft	48	32 x 90	36	32 x 98	92	4718	4-6V
DMSL-26(W)	1000	32 ft	26 ft	48	44 x 90	36	46 x 98	92	4884	4-6V
DSL-32	700	38 ft	32 ft	48	44 x 90	36	46 x 98	96	5533	4-6V
DSL-40	550	46 ft	40 ft	58	44 x 90	36	47 x 98	102	6834	4-12V
DSL-45	500	51 ft	45 ft	58	44 x 104	36	55 x 112	102	7320	4-12V

Documented model configurations	7

Source: 2026 personnel lift catalog, PDF pages 12, 13. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Drivable Personnel Scissor Lifts — DMSL and DSL Series is presented here with the configurations documented in the 2026 personnel lift catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Model and option notes: DMSL-19C* 500 25’ 19’ 42” 28” x 53” 24” 32” x 60” 83” 2733 2 - 12V.

Documentation & drawings

Reference: 2026 personnel lift catalog, PDF pages 12, 13. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 personnel lift catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

Scissor Lifts

Drivable Personnel Scissor Lifts — DMSL and DSL Series

Manufacturer: Ballymore

Drivable Personnel Scissor Lifts — DMSL and DSL Series. Documented model configurations: 7.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

Documented model configurations: 7

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
