| Model / reference | CAPACITY | USEABLE DECK | OVERALL SIZE | HEIGHT / DECK | HEIGHT / HANDLE | MAX INCLINE / HANDLE | SPEED / HANDLE | WEIGHT / HANDLE |
|---|---|---|---|---|---|---|---|---|
| BM-MCSP-1K-24X32 | 1,000 | 24 x 32 | 25.5 x 40 | 11.5 | 39 | 6° | 0-3MPH | 235 lbs |
| BM-MCSP-1.5K-25X40 | 1,500 | 25.5 x 40 | 27 x 50 | 11.5 | 39 | 6° | 0-3MPH | 235 lbs |
| BM-MCSP-1.5K-25X49 | 1,500 | 25.5 x 49 | 27 x 56.5 | 11.5 | 39 | 6° | 0-3MPH | 245 lbs |
| BM-MCSP-1.5K-25X61 | 1,500 | 25.5 x 61 | 27 x 68.5 | 11.5 | 39 | 6° | 0-3MPH | 255 lbs |
| BM-MCSP-2K-25X40 | 2,000 | 25.5 x 40 | 27 x 50 | 11.5 | 39 | 6° | 0-3MPH | 255 lbs |
| BM-MCSP-2K-25X49 | 2,000 | 25.5 x 49 | 27 x 56.5 | 11.5 | 39 | 6° | 0-3MPH | 255 lbs |
| BM-MCSP-2K-25X61 | 2,000 | 25.5 x 61 | 27 x 68.5 | 11.5 | 39 | 6° | 0-3MPH | 400 lbs |
| Documented model configurations | 7 |
|---|---|
| HEIGHT / DECK | 11.5 |
| HEIGHT / HANDLE | 39 |
| MAX INCLINE / HANDLE | 6° |
| SPEED / HANDLE | 0-3MPH |
| Catalog feature / option | 24-Volt Electronics and Drive Motor |
Source: 2026 material handling catalog, PDF page 43. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

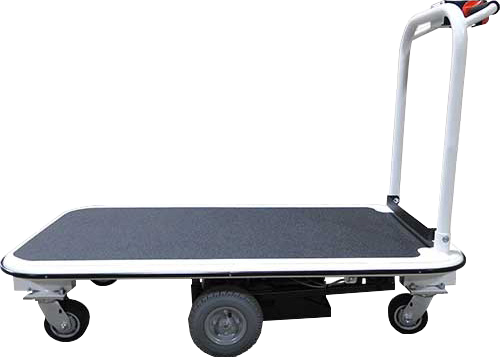

Electric Platform Trucks — Moto-Cart is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: On-Board UL-Charger; Free Wheel Mode; Pneumatic Rubber Drive Wheels; Poly Casters; Front Wheel Transaxle Drive; Battery Gauge; Full Perimeter Bumper; Back-Up Beeper; Roller Speed Controls; Top Speed Control Switch; Power Green Light; Emergency Stop Bump Switch; Horn and Key Switch; 24-Volt Electronics and Drive Motor; Maneuverable Center Wheel Drive; On-Board Battery Charger; Free-Wheel Mode; Articulated Transaxle Drive; Deep cycle Maintenance-Free Batteries; Anti-Skid Deck Mat; Bumper Molding; Powder Coated White; Maximum Speed 3 mph; Automatic Braking.
Reference: 2026 material handling catalog, PDF page 43. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
