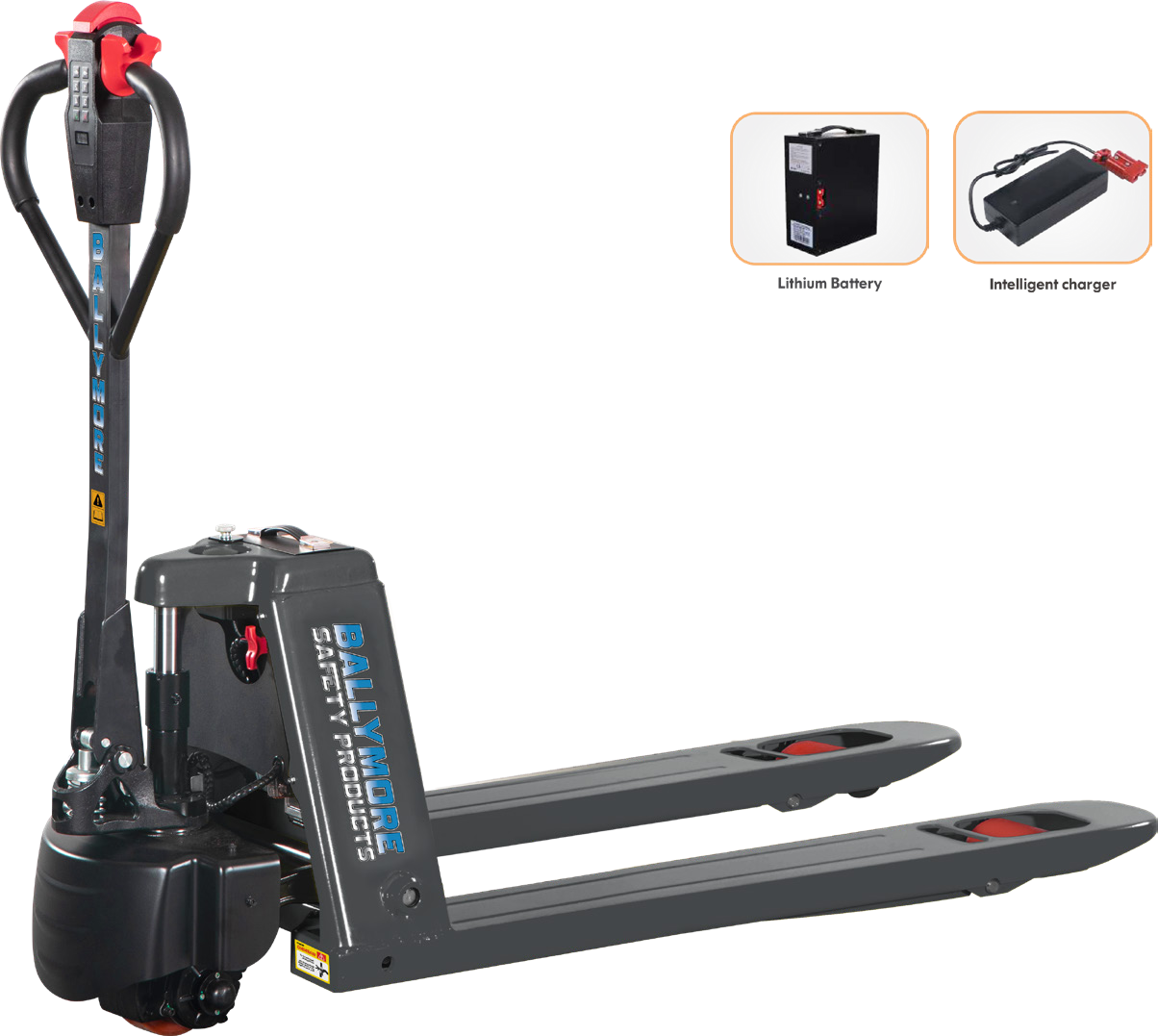

Electric Walkie Pallet Trucks — EPJ Series — original catalog photograph

Open an image to inspect its original detail.

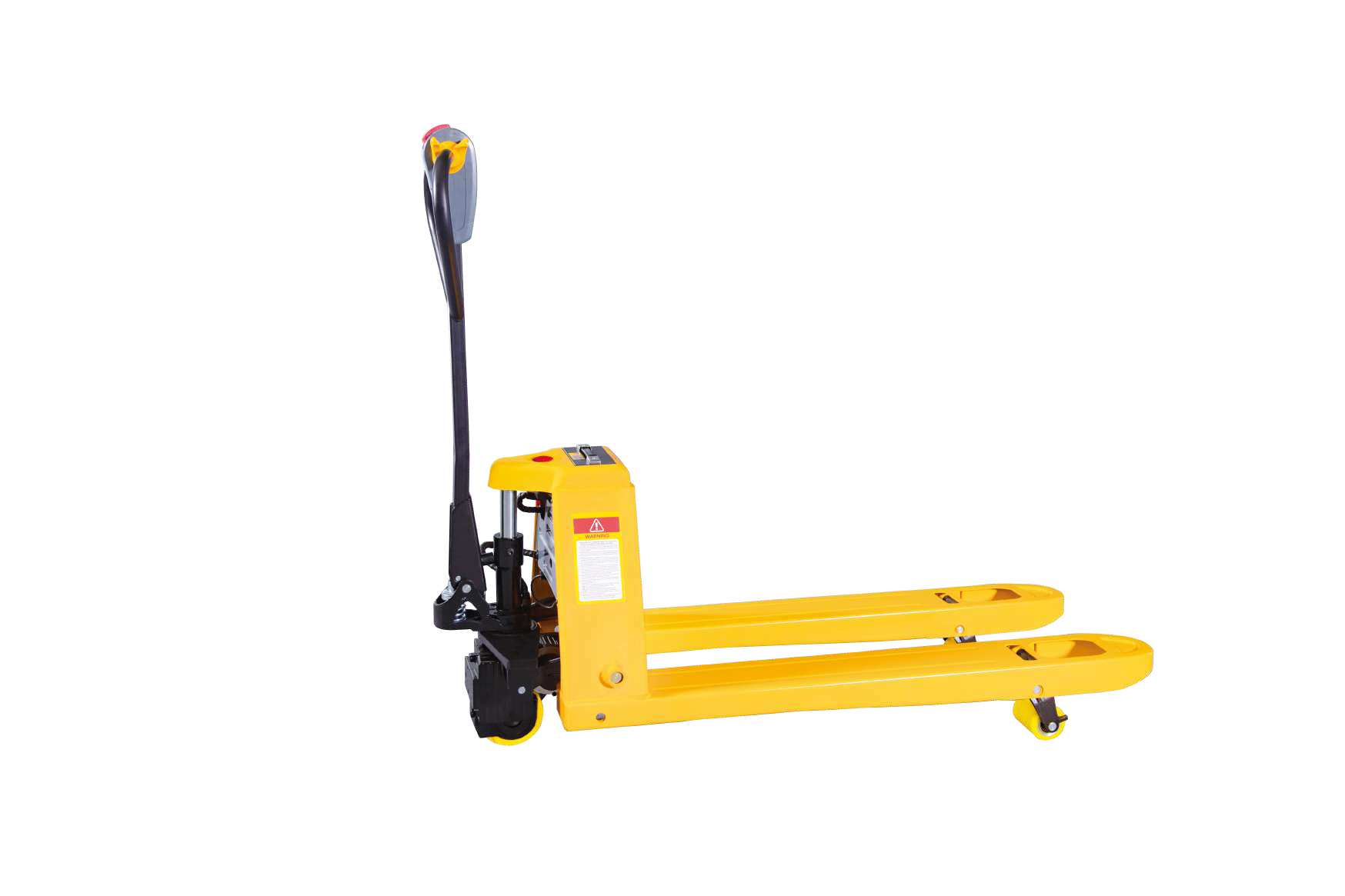

Electric Walkie Pallet Trucks — EPJ Series — catalog equipment photograph

Specifications & options

Model / referenceWEIGHT CAPACITYLIFT HEIGHTHEIGHT OF TILLER IN THE DRIVE POSITIONHEIGHT LOWEREDFORK LENGTHFORK WIDTHOVERALL LENGTHOVERALL WIDTHWEIGHTPOWER - BATTERIES
BM-EPJ-33S-2133004.5”49” MAX3.15”45.3”6.3”61.1”21.6”24348V/15Ah
BM-EPJ-33S-2733004.5”49” MAX3.15”48”6.3”63.8”27”25448V/15Ah
BM-EPJ-44S-2144004.5”49” MAX3.15”45.3”6.3”61.1”21.6”24648V/15Ah
BM-EPJ-44S-2744004.5”49” MAX3.15”48”6.3”63.8”27”25748V/15Ah
Documented model configurations4
LIFT HEIGHT4.5”
HEIGHT OF TILLER IN THE DRIVE POSITION49” MAX
HEIGHT LOWERED3.15”
FORK WIDTH6.3”
POWER - BATTERIES48V/15Ah
Catalog feature / optionBattery Voltage 1 x 12V

Source: 2026 material handling catalog, PDF page 11. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Electric Walkie Pallet Trucks — EPJ Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Overall Length= 63”; Battery Voltage 1 x 12V; Maintenance free 750W/1000W power Brushless motor; Powered traveling, lifting, & lowering; Emergency reverse “belly” button; Fast and Slow Speed; Up-right Drive Mode; Engineering Mode - If the unit breaks down, it can be moved away manually; PIN access control; Slope anti-sliding design; Quick charging Lithium Ion battery; Simple & easy to maintain; COMFORTABLE OPERATION; LEADING TECHNOLOGY; FAST AND SLOW SPEED; UP-RIGHT DRIVE MODE.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 11. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
