| Model / reference | LIFT HEIGHT | CAPACITY | CAPACITY / OD | CAPACITY / W | CAPACITY / L | STRADDLE ID / CAPACITY / L | MAST HEIGHT / CAPACITY / DOWN | MAST HEIGHT / CAPACITY / UP | WEIGHT / CAPACITY / UP |
|---|---|---|---|---|---|---|---|---|---|
| BM-MXEM-2200-63H | 63” | 2200 | 8.3”-31.5” | 3.875” | 42” | 39”/43”/47”/50.8” | 79.5” | 79.5” | 880 lbs |
| BM-MXEM-2200-93H | 96” | 2200 | 8.3”-31.5” | 3.875” | 42” | 39”/43”/47”/50.8” | 70” | 110” | 945 lbs |
| Documented model configurations | 2 |
|---|---|
| CAPACITY | 2200 |
| CAPACITY / OD | 8.3”-31.5” |
| CAPACITY / W | 3.875” |
| CAPACITY / L | 42” |
| STRADDLE ID / CAPACITY / L | 39”/43”/47”/50.8” |
| Catalog feature / option | Chain pulley quietly lifts platform |
| Catalog feature / option | Adjustable fork carriage |

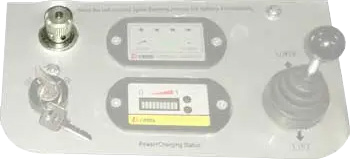

| Catalog feature / option | Volt meter |
| Catalog feature / option | Pallet forks |
Source: 2026 material handling catalog, PDF page 39. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

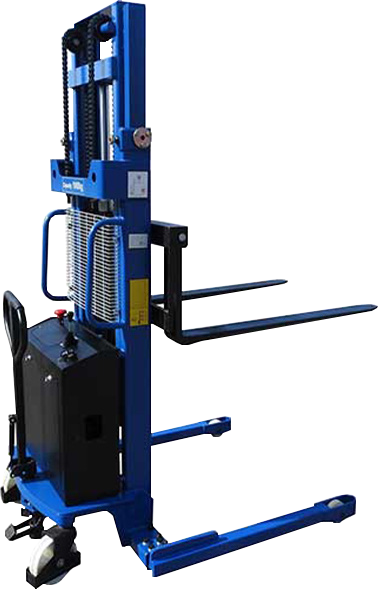

Electric Walkie Stackers — MXEM Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Smooth steel top with backrest; Chain pulley quietly lifts platform; Push handle MXEM; Adjustable fork carriage; Volt meter; Key switch; 120 Ah battery; 12v 15 Amp amp charger; Foot actuated floor lock; Pallet forks; Positive steer tracking caster; Adjustable straddle legs; Ergonomic push handle; Quick access maintenance cover; Entrapped rollers; “Lift”/”Lower” stick; Operator safety screen; Built-in relief valve; Pressure compensating control valve; Reservoir with integral filter; All-welded steel mast; Chrome plated lift cylinder rod; Heavy-duty lifting chains; Integral battery charger.
Reference: 2026 material handling catalog, PDF page 39. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
