Open an image to inspect its original detail.
| Model / reference | Capacity (lb) | Deck Size L x W (in) | Wheels | Hitch Type | Steel Gauge | Dimensions L x W x H (in) | Weight (lb) | Size L x W (in) | Catalog configuration | Pneumatic | Foam Filled | Ring & Pintle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F89321 | 1,000 | 60 x 36 | (4) 12” Pneumatic | Pin & Clevis | 14 | 91 x 36 x 16 | 190 | — | — | — | — | — |
| F83978 | 2,000 | 96 x 48 | (4) 16” Pneumatic | Pin & Clevis | 14 | 127 x 48 x 19 | 334 | — | — | — | — | — |
| F83993 | 4,000 | 96 x 48 | (4) 16” Pneumatic | Ring & Pintle | 14 | 134 x 48 x 22 | 540 | — | — | — | — | — |
| F83997 | 6,000 | 96 x 48 | (4) 20” Pneumatic | Ring & Pintle | 12 | 134 x 49 x 24 | 681 | — | — | — | — | — |
| F68932A4 | 2,000 | — | — | — | — | — | — | 60 x 36 | — | — | — | — |
| F68818A6 | 4,000 | — | — | — | — | — | — | 60 x 36 | — | — | — | — |
| F68933A5 | 2,000 | — | — | — | — | — | — | 72 x 36 | — | — | — | — |
| F68819A7 | 4,000 | — | — | — | — | — | — | 72 x 36 | — | — | — | — |
| F68822A0 | 6,000 | — | — | — | — | — | — | 72 x 36 | — | — | — | — |
| F68935A7 | 2,000 | — | — | — | — | — | — | 96 x 48 | — | — | — | — |
| F68821A9 | 4,000 | — | — | — | — | — | — | 96 x 48 | — | — | — | — |
| F68859A3 | 6,000 | — | — | — | — | — | — | 96 x 48 | — | — | — | — |
| F63725A8 — Catalog configuration: Poly; Pneumatic: F63726A7; Foam Filled: F63670A4 | — | — | — | — | — | — | — | — | Poly | F63726A7 | F63670A4 | — |
| F63725A8 — Catalog configuration: Poly; Pneumatic: F68805A3; Foam Filled: F63670A4 | — | — | — | — | — | — | — | — | Poly | F68805A3 | F63670A4 | — |
| F63725A8 — Catalog configuration: Poly; Pneumatic: F68803A1; Foam Filled: F68802A0 | — | — | — | — | — | — | — | — | Poly | F68803A1 | F68802A0 | — |
| F68809A7 | — | — | — | — | — | — | — | — | Pin & Clevis | — | — | F68807A5 |
| Documented model configurations | 16 |
|---|
Source: 2025 storage and handling catalog, PDF page 26. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

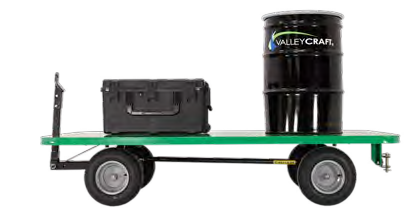

Four-Wheel-Steering Industrial Trailers is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

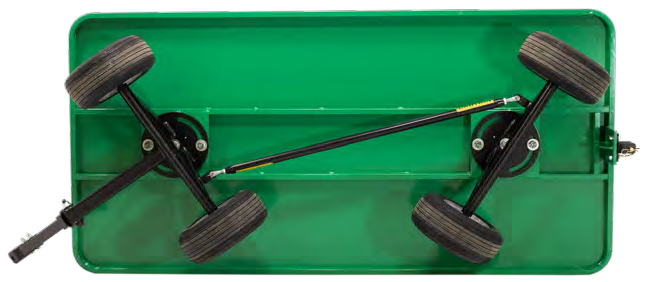

Catalog features and options: Ideal for transporting a variety of material via pull behind trailer.; Use individually or link multiple trailers together.; 4-Wheel precision track quad-steering.; Quad-steer design enables tighter turns.; Track around corners with the smallest footprint.; Most precise tracking trailers in the industry.; Heavy duty steel construction.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 26. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
