| Model / reference | Storage Type | Cylinder Size (lb) | Cylinder Capacity | Shelf/Rack Quantity | Dimensions W x D x H (in) | Weight (lb) |
|---|---|---|---|---|---|---|
| F89047 | Shelf | 20/33/44 | 8 | 2 Shelves | 32 x 40 x 71 | 200 |
| F89050 | Shelf | 20/33/44 | 16 | 2 Shelves | 62 x 40 x 71 | 400 |
| F89046 | Horizontal | 20/33/44 | 8 | 4 Racks | 32 x 40 x 71 | 230 |
| F89042 | Horizontal | 20/33/44 | 16 | 4 Racks | 62 x 40 x 71 | 430 |
| F89045 | Vertical | up to 200 | 10 | - | 32 x 40 x 71 | 190 |
| F89044 | Vertical | up to 200 | 20 | - | 62 x 40 x 71 | 330 |
| F89043 | Combo (Horizontal/Vertical) | 20/33/44, and up to 200 | 18 (8/10) | 4 Racks | 62 x 40 x 71 | 380 |
| Documented model configurations | 7 |
|---|
Source: 2025 storage and handling catalog, PDF page 49. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Gas Cylinder Storage Cabinets is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Organize and secure a variety of gas cylinder sizes.; Prevent potential unsafe tipping, rolling, or handling.; Fully welded 14 gauge steel construction.; Heavy duty steel mesh offers ventilation and visibility.; Steel legs feature predrilled holes for anchoring to the floor.; Secure pin closure with padlockable hasp.; Robust pin hinges eliminate possible door sagging.; Premium powder coat paint finish in safety yellow.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 49. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
SKU 691215076500

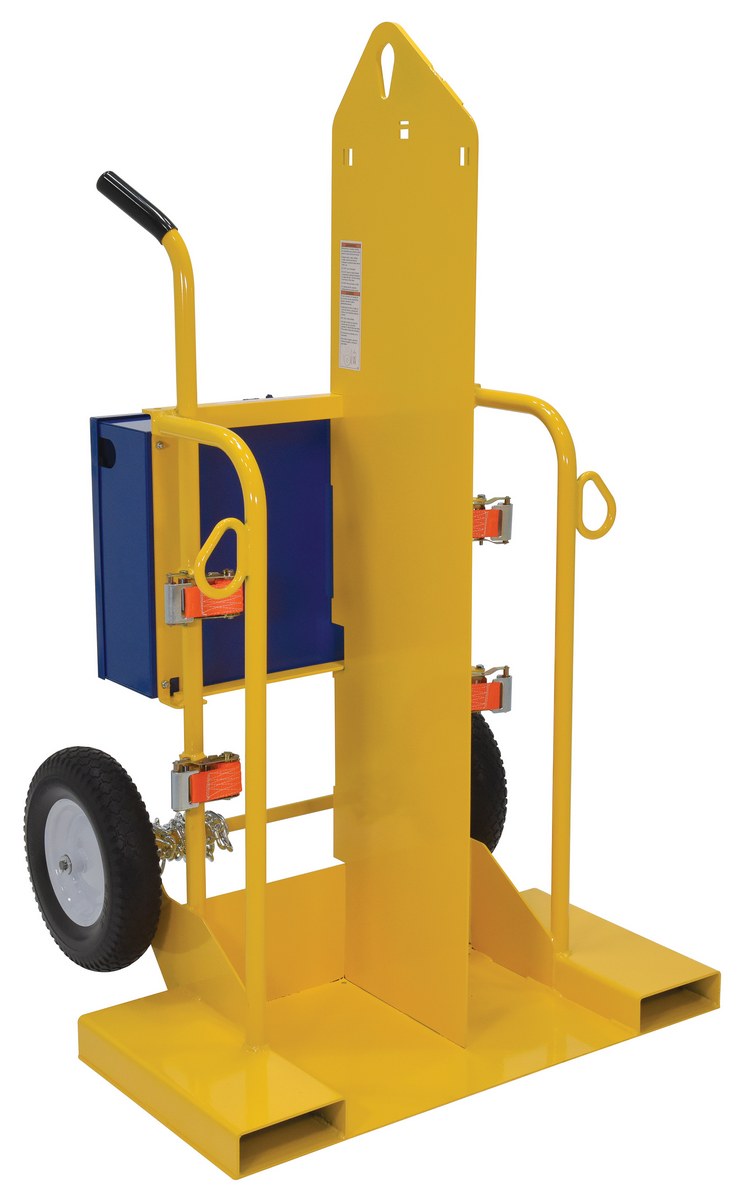

Vestil Steel Welding Cylinder Torch Cart with Foam Filled Wheels 34-3/8 In. x 40-1/4 In. x 66-3/8 In. 500 lb. Capacity Yellow CYL-2-FF. Material: Stee…
SKU 691215049757

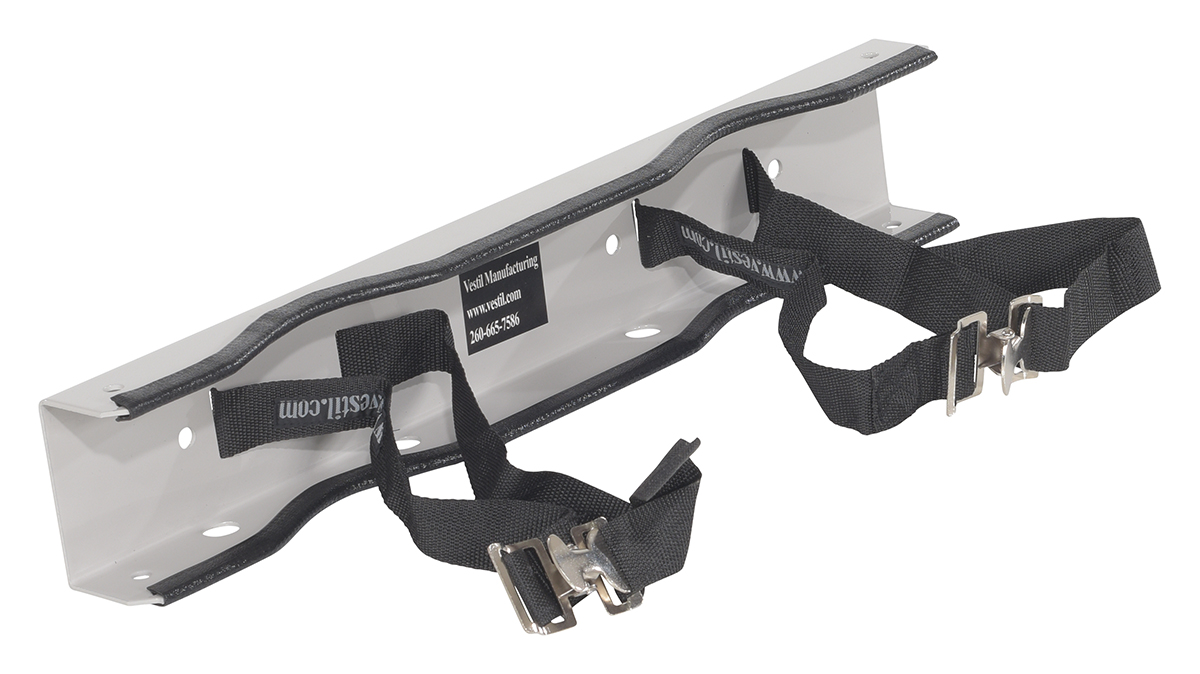

Vestil Steel Wall-Mounted 2 Cylinder Bracket CB-W-2S. Material: Steel; Color: Gray; Assembly: Assembled. Review the equipment information below to con…
