Open an image to inspect its original detail.
| Model / reference | Style | Tray Options / Size | Tray Options / Front | Casters / Front | Steel Gauge / Front | Capacity (lb) / Front | Dimensions L x W x H (in) / Front | Weight (lb) / Front |
|---|---|---|---|---|---|---|---|---|
| F89068VCGY | Single-sided | Standard (9”) | Standard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 2,500 | 38 x 25 x 63 | 130 |
| F89070VCGY | Single-sided | Standard (9”) | Lipped | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 2,500 | 38 x 25 x 63 | 142 |
| F89069VCGY | Single-sided | Large (15”) | Standard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 2,500 | 38 x 25 x 63 | 170 |
| F89071VCGY | Single-sided | Large (15”) | Lipped | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 2,500 | 38 x 25 x 63 | 182 |
| F89064VCGY | Double-sided | Standard (9”) | Standard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 2,500 | 38 x 30 x 63 | 210 |
| F89066VCGY | Double-sided | Standard (9”) | Lipped | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 2,500 | 38 x 30 x 63 | 251 |
| F89065VCGY | Double-sided | Large (15”) | Standard | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 2,500 | 38 x 42 x 63 | 255 |
| F89067VCGY | Double-sided | Large (15”) | Lipped | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 2,500 | 38 x 42 x 63 | 279 |
| F81813A4 | Single-sided | Build-Your-Own Base Models | Lipped | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 2,500 | 38 x 25 x 63 | 90 |
| F81814A3 | Double-sided | Build-Your-Own Base Models | Lipped | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel | 12 | 2,500 | 38 x 30 x 63 | 95 |
| Documented model configurations | 10 |
|---|---|
| Casters / Front | (4) 5” Phenolic: 2 Rigid, 2 Locking Swivel |
| Steel Gauge / Front | 12 |
| Capacity (lb) / Front | 2,500 |
| Catalog feature / option | Standard trays feature a flush front for easy loading/unloading. |
Source: 2025 storage and handling catalog, PDF page 22. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

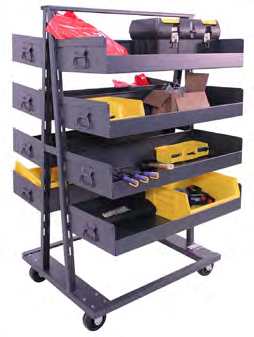

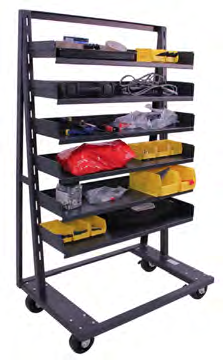

Heavy-Duty A-Frame Carts is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

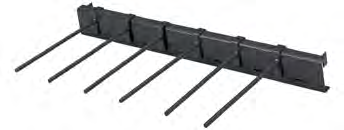

Catalog features and options: Customizable mobile solutions for workstations or storage spaces.; Pre-configured units with shelving offered, or choose to customize a base unit yourself.; Variety of sizes and configurations to fit your space and needs.; Standard trays feature a flush front for easy loading/unloading.; Lipped trays feature a front raised lip that secures parts and supplies.; Accessory options include trays, tray dividers, hanger bars, spindles, and bins.; Premium powder coat paint finish.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 22. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
