Open an image to inspect its original detail.
| Model / reference | LOAD CENTER | CAPACITY / STD | CAPACITY / MAX | LIFT / STD | LIFT / MAX | HEIGHT / COL | LIFT / HEIGHT / EXT | FORK OD / EXT | STRADDLE / ID | LIFT / STRADDLE / OD |
|---|---|---|---|---|---|---|---|---|---|---|
| BM-MXIBH-2000-84H | 18” | 1000 | 2000 | 60” | 84” | 72” | 73.5” | 26” | 17” | 24” |
| BM-MXIBH-2500-84H | 18”-24” | 1000 | 2500 | 57” | 84” | 72” | 74” | 6” - 24” | 26” | 33” |
| BM-MXIBH-2500-144H | 18”-24” | 1500 | 2500 | 96” | 144” | 69” | 116” | 9.75” - 28” | 30” | 38” |
| Documented model configurations | 3 |
|---|---|
| Catalog feature / option | 12 volt electrical power |
| Catalog feature / option | Shaft type forks |
Source: 2026 material handling catalog, PDF page 38. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

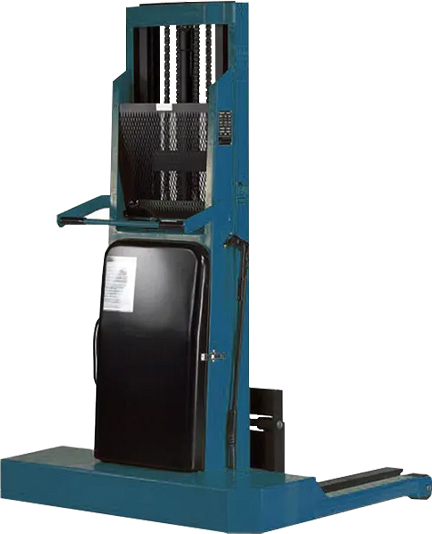

I-Beam Hydraulic Walkie Stackers — MXIBH Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Hydraulic foot pump; 4 bolt pattern steer casters; Operator safety screen; Push handles; Entrapped rollers MXIBH; 12 volt electrical power; Built-in battery pack and charger; Interlocked channel and I beam mast; Full filtration hydraulic system; Dual lift chains; Dual adjustable floor locks; Premium steel frame construction; Maneuverability in tight areas; Shaft type forks; Chrome plated lift cylinder; Pressure compensation valves; Continuously welded chassis; No-drift check in neutral; Built-In relief valve; Screen mast guard; One piece door cover ADDITIONAL OPTIONS:; Lowering Alarm; Battery Discharge Meter; Smart Charger.
Reference: 2026 material handling catalog, PDF page 38. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
