| Model / reference | Description | Drum Capability / Type | Drum Capability / Gallon | Drum Capability / Diameter (in) | Size (in) / Diameter (in) | Capacity (lb) / Diameter (in) | Weight (lb) / Diameter (in) |
|---|---|---|---|---|---|---|---|
| F86146A9 | Drum Grip | Universal | 30/55/85 | 18 - 28 | - | 800 | 110 |
| F88560A2 | Drum Beak | Universal | 30/55/85 | 18 - 28 | - | 800 | 48 |
| F89156 | Drum Rotator | Universal | 30/55 | 14 - 24 | - | 800 | 151 |
| F89409A5 | Drum Tilter | Universal | 30/55 | 14 - 24 | - | 800 | 70 |
| F89406A8 | Pallet Forks | - | 30/55 | 14 - 24 | 24 | 800 | 50 |
| F89418A4 | Steel Platform | - | 30/55 | 14 - 24 | 24 x 24 | 800 | 20 |
| Documented model configurations | 6 |
|---|---|
| Capacity (lb) / Diameter (in) | 800 |
| Catalog feature / option | Safe spring-loaded, hands-free grip connection. Drum Beak |
| Catalog feature / option | 24” fork length. Pallet Forks |
| Catalog feature / option | Flat platform for raising and moving a variety of material. |
Source: 2025 storage and handling catalog, PDF page 38. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Interchangeable Steel Lift Attachments is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Jaws automatically adjust to grip around drum.; Secure drum for transport by raising unit to snug jaws under top lip. Drum Grip; Safe spring-loaded, hands-free grip connection. Drum Beak; Ergonomically lift and rotate drums to transport or dump material.; 360° continuous rotation in either direction. Drum Rotator; Ergonomically lift and tilt drums to transport or dump material.; 120° rotation, using hand crank with fixed point and ball screw. Drum Tilter; Easily move, elevate, and stack pallets.; 24” fork length. Pallet Forks; Flat platform for raising and moving a variety of material.; Elevate work material to ergonomic positioning.; Used in conjunction with Pallet Forks attachment (sold separately). Steel Plaform Drum Grip Drum Beak Drum Rotator Drum Tilter Pallet Forks Steel Platform Interchangeable accessory options work seamlessly with all Steel Lift models..
Model and option notes: • Used in conjunction with Pallet Forks attachment (sold separately)..
Reference: 2025 storage and handling catalog, PDF page 38. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
SKU 691215002349

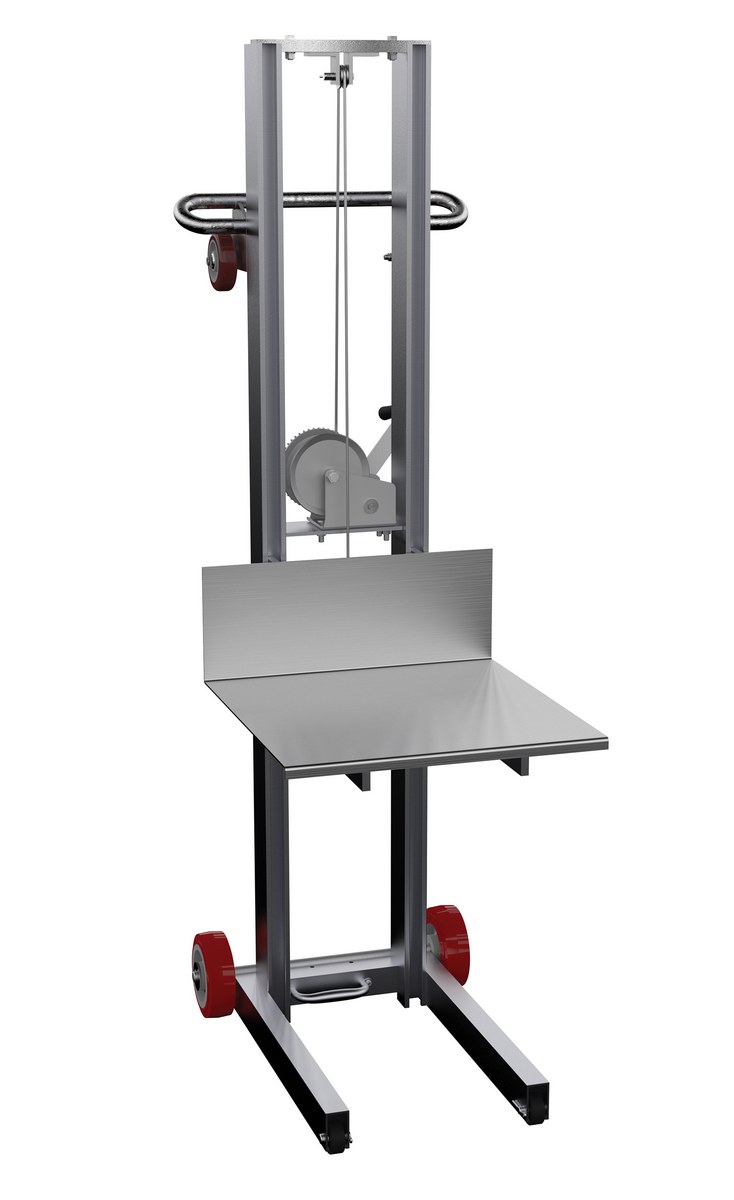

Vestil Aluminum Lite Load Lift With Winch and Fixed Wheels 20 In. x 20 In. Platform 400 Lb. Capacity Silver ALLW-2020-FW. Material: Aluminum/Steel; Co…
SKU 31-10-0149
Vestil Portable Worksite Lift. Platform Width (Inches): 20; Platform Length (Inches): 20; Service Range: 14.75 - 70. Review the equipment information …
Equipment details

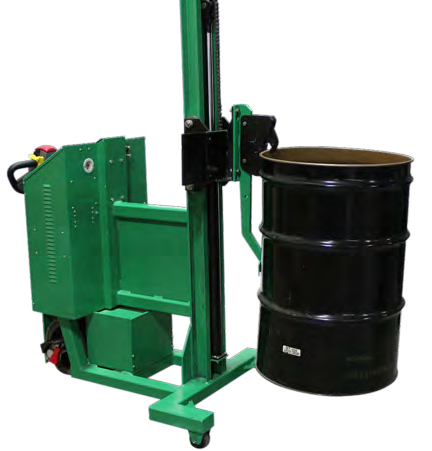

Powered-Drive Interchangeable-Attachment Steel Lifts. Documented model configurations: 2. Style: Fully Powered. Base: Counter- weighted.
