| Model / reference | Shelf Size W x D (in) | Height (in) | Shelf Quantity | Steel Gauge / Posts | Steel Gauge / Shelves | Dimensions W x D x H (in) / Shelves | Shelf Capacity (lb) / Shelves | Weight (lb) / Shelves |
|---|---|---|---|---|---|---|---|---|
| F89012 | 36 x 24 | 60 | 4 | 12 | 16 | 36 x 24 x 60 | 1,500 | 109 |
| F89011 | 36 x 24 | 72 | 4 | 12 | 16 | 36 x 24 x 72 | 1,500 | 115 |
| F89010 | 48 x 24 | 60 | 4 | 12 | 16 | 48 x 24 x 60 | 1,500 | 150 |
| F89009 | 48 x 24 | 72 | 4 | 12 | 16 | 48 x 24 x 72 | 1,500 | 156 |
| F89008 | 60 x 24 | 60 | 4 | 12 | 16 | 60 x 24 x 60 | 1,500 | 180 |
| F89007 | 60 x 24 | 72 | 4 | 12 | 16 | 60 x 24 x 72 | 1,500 | 186 |
| Documented model configurations | 6 |
|---|---|
| Shelf Quantity | 4 |
| Steel Gauge / Posts | 12 |
| Steel Gauge / Shelves | 16 |
| Shelf Capacity (lb) / Shelves | 1,500 |
| Catalog feature / option | Reinforced flanged shelves increase capacity and eliminate warping. |
| Catalog feature / option | 1,500 lb. capacity per shelf. |
Source: 2025 storage and handling catalog, PDF page 51. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

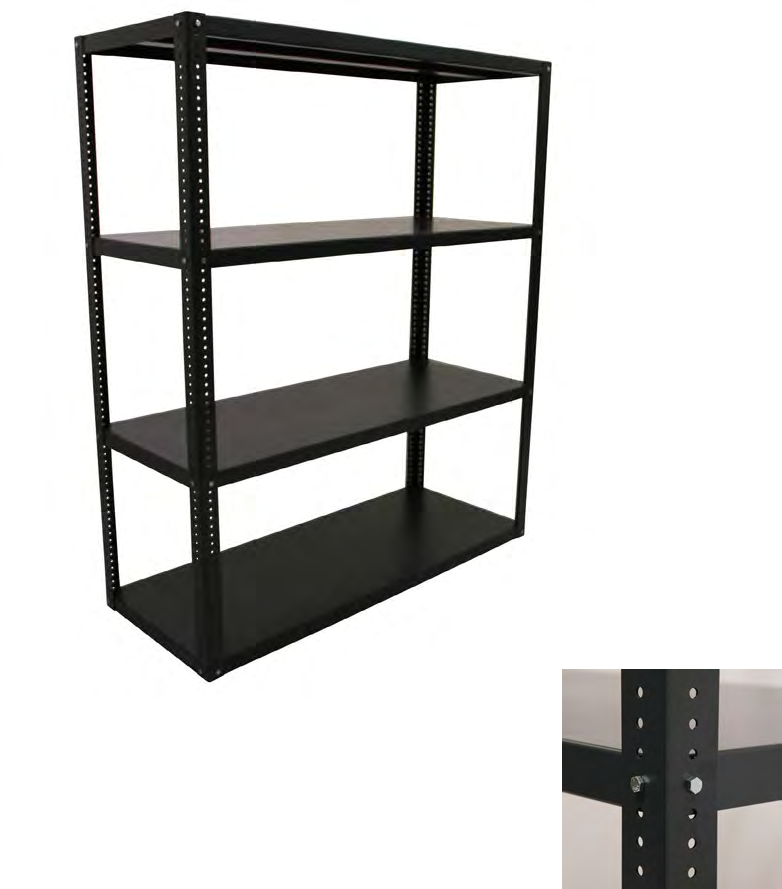

Modular Industrial Shelving is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Shelving built to handle and store a variety of products.; Designed to withstand years of heavy use.; (4) 12 gauge steel corner posts improve durability and longevity.; (4) 24” deep 16 gauge shelves included; easily adjustable on 1” increments.; Reinforced flanged shelves increase capacity and eliminate warping.; 1,500 lb. capacity per shelf.; Variety of sizes to fit your storage needs.; Quick and easy assembly, hardware pack included.; Heavy duty steel construction.; Additional shelves sold separately.; Premium powder coat paint finish in gray..
Model and option notes: • Additional shelves sold separately..
Reference: 2025 storage and handling catalog, PDF page 51. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
