Open an image to inspect its original detail.
| Model / reference | LIFT | HEIGHT / COL | HEIGHT / EXT* | FREE LIFT / EXT* | FORK OD / EXT* | STRADDLE / ID | STRADDLE / OD |
|---|---|---|---|---|---|---|---|
| BM-MXSE-2200-78 | 62” | 78.5” | 78.3” | 55.1” | 21.75” | 10” | 19.9” |
| BM-MXSE-2200-83 | 62” | 76.4” | 83” | 55.6” | 8”-29.5” | 38”-50” | 44”-56” |
| BM-MXSE-2200-134 | 96” | 70.7” | 134” | 0” | 8”-29.5” | 38”-50” | 44”-56” |
| BM-MXSE-2200-153 | 116” | 80.7” | 153.5” | 0” | 8”-29.5” | 38”-50” | 44”-56” |
| Documented model configurations | 4 |
|---|---|
| Catalog feature / option | Adjustable straddles or fork over configuration |
Source: 2026 material handling catalog, PDF page 40. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

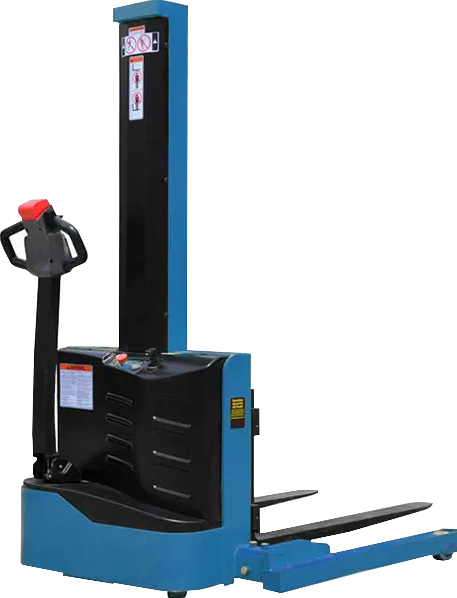

Narrow-Aisle Walkie Stacker — MXSE Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Efficient 24V permanent magnet drive motor; Adjustable straddles or fork over configuration; Infinitely variable speed for tight turning; Handle with safety reversing switch and horn; Maintenance free AGM integral battery pack; Built-in automatic 110VAC charger; Battery discharge indicator; Emergency power disconnect; Key switch to limit access to.
Reference: 2026 material handling catalog, PDF page 40. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
