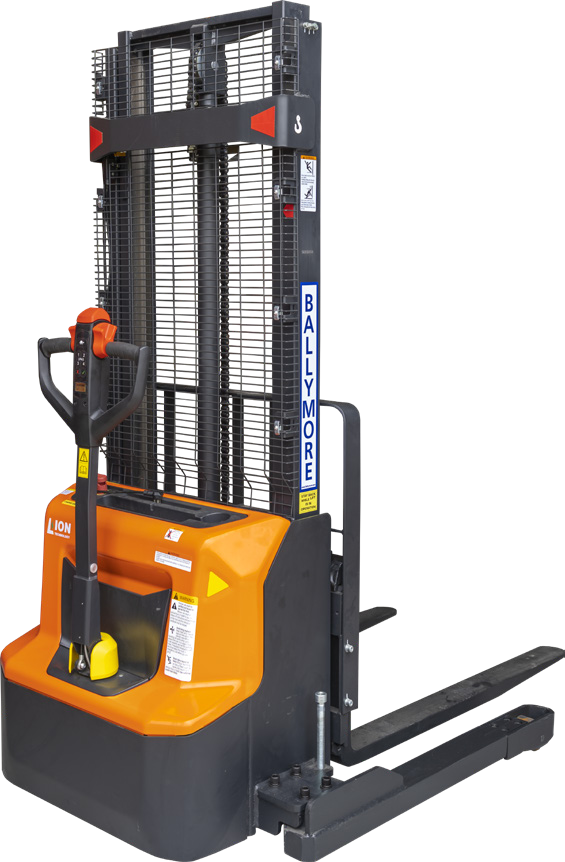

Narrow-Leg Lithium Stackers — catalog equipment photograph

Open an image to inspect its original detail.

Narrow-Leg Lithium Stackers — catalog equipment photographNarrow-Leg Lithium Stackers — catalog equipment photograph

Specifications & options

Model / referenceWEIGHT CAPACITY (LBS)LIFT HEIGHT MAXFORK LENGTHFOR WIDTBASE K LEGS H (OD)OVERALL LENGTHOVERALL WIDTHOVERALL HEIGHT (LOWERED)WEIGHT (LBS)POWER - BATTERIES
BALLYPAL26NSL1142600114”45”4”46” TO 58”72”47”77”165124V
BALLYPAL26NSL1422600142”45”4”46” TO 58”72”47”91”171724V
Documented model configurations2
WEIGHT CAPACITY (LBS)2600
FORK LENGTH45”
FOR WIDT4”
BASE K LEGS H (OD)46” TO 58”
OVERALL LENGTH72”
OVERALL WIDTH47”
POWER - BATTERIES24V
Catalog feature / optionCapacity = 2600 lbs.
Catalog feature / optionLoad Center= 24”

Source: 2026 material handling catalog, PDF page 9. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Narrow-Leg Lithium Stackers is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Capacity = 2600 lbs.; Battery = 24V / 60AH Lithium; Duty Cycle per Charge = 4 Hours; Straddle Legs O.D. = 46” to 58”; Straddle Legs I.D. = 38” to 50”; Load Center= 24”; Travel Speed= 2.61/Laden- 2.80 Unladen; Overall Width= 47”; Charger= 25AMP on board; Battery gauge and On/Off switch; Integrated 150 Ah maintenance free battery provides more than enough power to handle heavy duty lifting; Integrated charger facilitates easy and reliable charging.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 9. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
