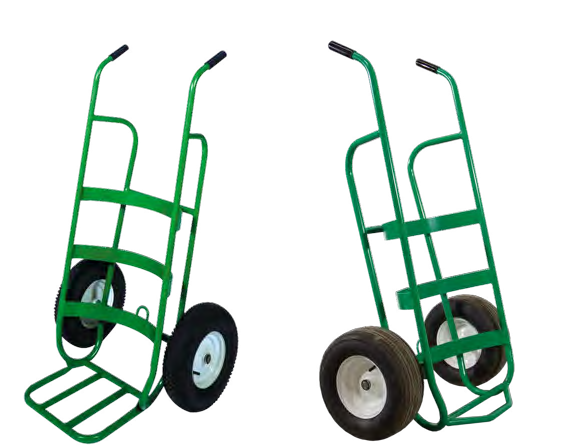

| Model / reference | Style | Shoe Size W x D (in) | Wheel | Dimensions W x D x H (in) | Capacity (lb) | Weight (lb) |
|---|---|---|---|---|---|---|
| F86088A9 | Balled/Potted | 23 x 5 | (2) 16” Pneumatic | 39 x 23 x 64 | 1,500 | 70 |
| F86083A4 | Containerized | 23 x 15 | (2) 16” Pneumatic | 39 x 31 x 64 | 1,500 | 70 |
| Documented model configurations | 2 |
|---|---|
| Wheel | (2) 16” Pneumatic |
| Capacity (lb) | 1,500 |
| Weight (lb) | 70 |
| Catalog feature / option | Steel tow hook to secure large unbalanced loads. |
Source: 2025 storage and handling catalog, PDF page 47. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

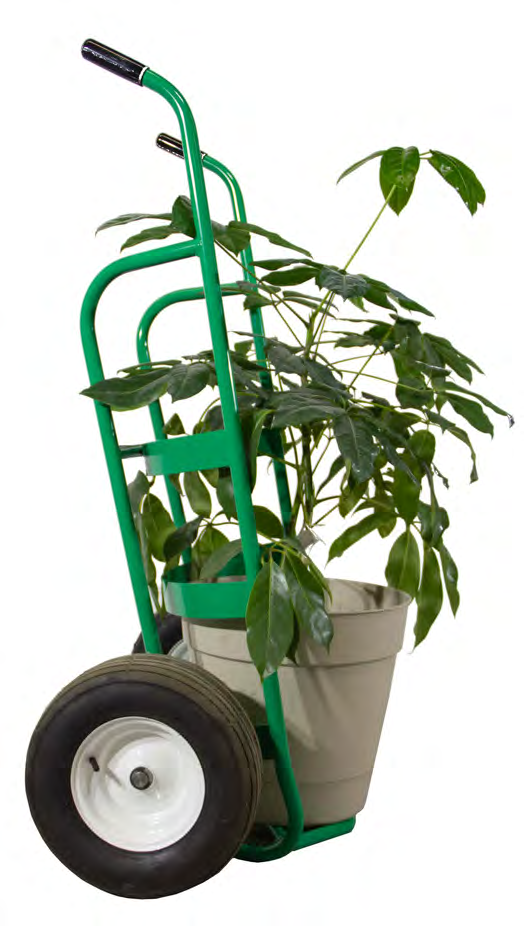

Nursery Plant Hand Trucks is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Ideal for a variety of nursery applications.; Compatible with containerized or balled/burlapped plants.; Constructed to withstand dirt, water, and the elements.; Oversized 16” pneumatic wheels roll easily over uneven terrain.; Rubber grip twin handles improve operator control.; Steel tow hook to secure large unbalanced loads.; Heavy duty, all welded steel construction.; Premium powder coat paint finish.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 47. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

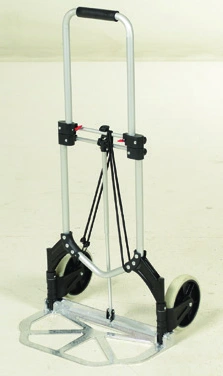

SKU FHC-150
Foldaway Hand Trucks: 5 catalog model references. Folded Size (W X L X H): 15 1/8" x 2" x 29¾"; 19" x 2¾" x 26"; 19" x 2½" x 31"; 23" x 3" x 39½"; Siz…

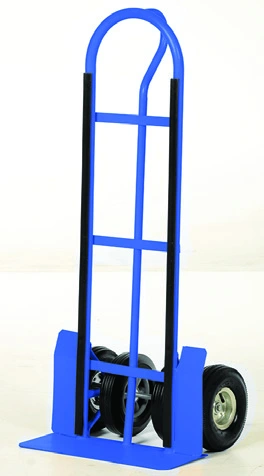

SKU SPHT-500S-DW
4 Wheel Pneumatic/Hard Rubber Hand Truck: 1 catalog model references. Nose Plate (W X D): 22" x 7½"; Overall Size (W X D X H): 22" x 19" x 52".

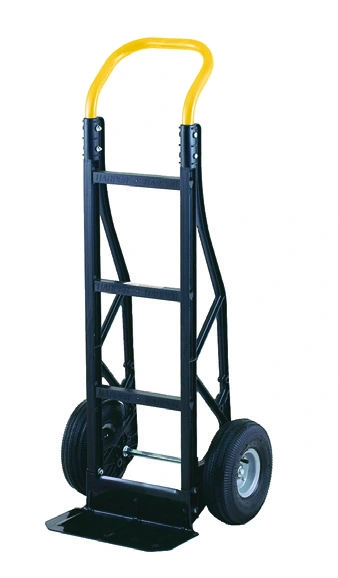

SKU FNHT-500
