Equipment details
5092EX Explosion Proof Scissor Lift
5092EX Explosion Proof Scissor Lift: Maximum Reach & Capacity for Safe Work in Classified Areas
- Working height
- 56 ft
- Platform dimensions
- 74 x 168 in
Original catalog photograph. Confirm the selected model and configuration with your quote.
Specifications & options
| Working height | 24 ft |
|---|---|
| Platform height | 18 ft |
| Capacity | 500 lbs |
| Ground clearance | 4 in |
Source: existing product information. Confirm current specifications, supplier-listed approvals and optional configurations with your quote.
PRODUCT INFORMATION
Equipment overview

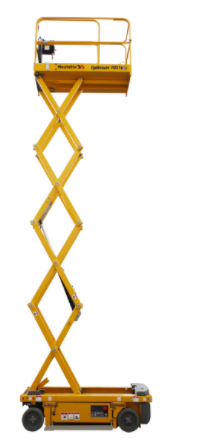

Optimum 1931AC Scissor Lift is one of the most Sold Scissor Lifts represented by Factory Equipment.
Best driving and lifting experience
AC powered
Smooth proportional movements
Industry leading turning radius
Utmost versatility
Working height: 24 ft 11 in
Platform height: 18 ft 11 in
Lift capacity: 500 lbs
Platform length – outside: 5 ft 8 in
Platform length – extended: 8 ft 6 in
Extension length: 2 ft 10 in
Platform width – outside: 2 ft 5 in
Height – stowed: 6 ft 6 in
Overall width: 2 ft 7 in
Length: 6 ft 3 in
Wheelbase: 4 ft 6 in
Ground clearance: 4 in
Ground clearance – Pothole guards deployed: 1 in
Drive speed: 0.3 – 2.8 mph
Driveable at full height up to 18 ft 11 in
Gradeability: 25 %
Tilt alarm: 1.5° – 3°
Lift / lower speed: 20 s / 29 s
Documentation & drawings
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
What specifications are listed for 12462?
The technical table lists specifications explicitly stated in the existing product information. Confirm the selected configuration and current supplier documentation with your quote.
How do I request a quote for 12462?
Include the product name and SKU 12462, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.
Can you confirm freight and delivery timing?
Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
