| Model / reference | Power Source | Dump Angle | Fork Pocket Size L x W x H (in) | Distance Between Fork Pockets (in) | Dimensions L x W x H (in) | Capacity (lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| F89681 | Forklift | 91° | 313/8 x 61/2 x 21/2 | 271/2 | 43 x 41 x 14 | 2,000 | 265 |
| Power Source | Forklift |
|---|---|
| Dump Angle | 91° |
| Fork Pocket Size L x W x H (in) | 313/8 x 61/2 x 21/2 |
| Distance Between Fork Pockets (in) | 271/2 |
| Dimensions L x W x H (in) | 43 x 41 x 14 |
| Capacity (lb) | 2,000 |
| Weight (lb) | 265 |
| Catalog feature / option | Forklift attachment used in tandem with Mobile Hoppers (½ and 1 cubic yard). |
| Catalog feature / option | Simply transport and dump multiple hoppers using just one forklift attachment. |
| Catalog feature / option | Secure unit to forklift forks with built-in T-bolts. |
| Catalog feature / option | Connect unit by attaching included quick-connect couplers to forklift auxiliary circuit. |
| Catalog feature / option | Control unit ergonomically by using convenient forklift controls. |
Source: 2025 storage and handling catalog, PDF page 29. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

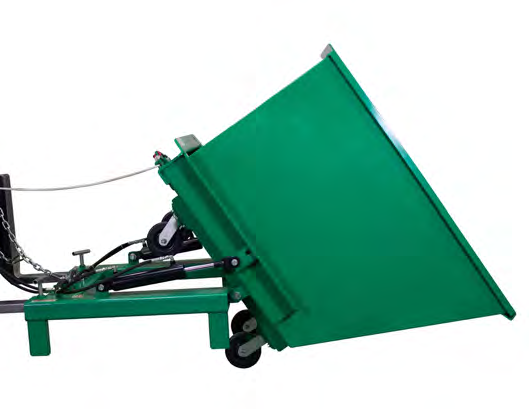

Powered Forklift Self-Dumping Attachment is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Forklift attachment used in tandem with Mobile Hoppers (½ and 1 cubic yard).; Simply transport and dump multiple hoppers using just one forklift attachment.; Fully powered unit eliminates the need for manual assisting dumps.; Improves safety while increasing productivity when transporting and dumping material.; Start & stop at any point during dumping/retracting process.; Secure unit to forklift forks with built-in T-bolts.; Connect unit by attaching included quick-connect couplers to forklift auxiliary circuit.; Control unit ergonomically by using convenient forklift controls.; Quick 5 second cycle time.; Heavy duty, fully welded steel construction.; Premium powder coat paint finish.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 29. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
SKU 691215030243

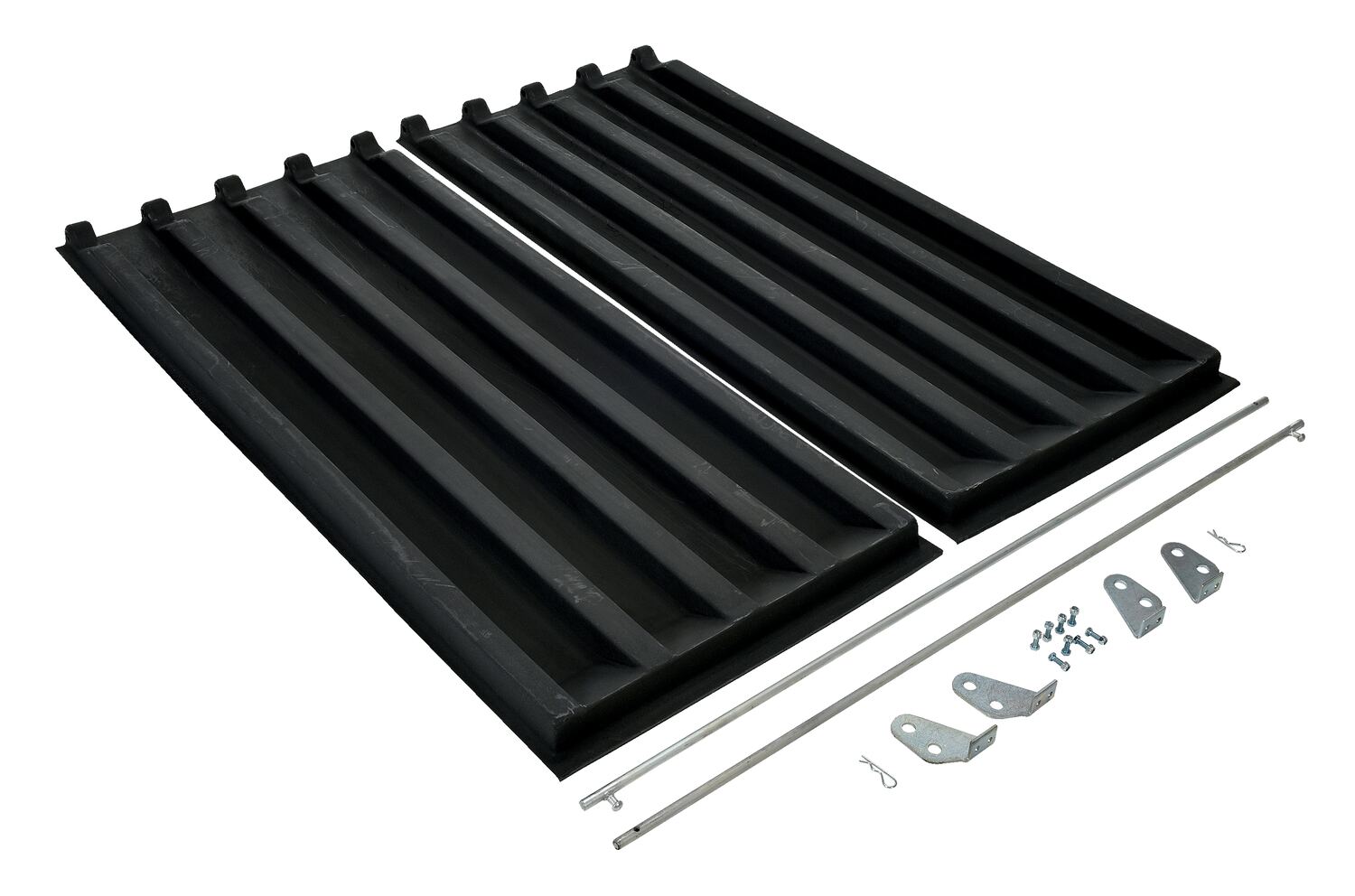

Vestil Polyethylene Heavy Duty D Style Hopper Lid (Use with 2 Cubic Yard Hoppers) Black PLID-D-200. Material: Polyethylene; Color: Black; Assembly: As…
SKU 691215030229

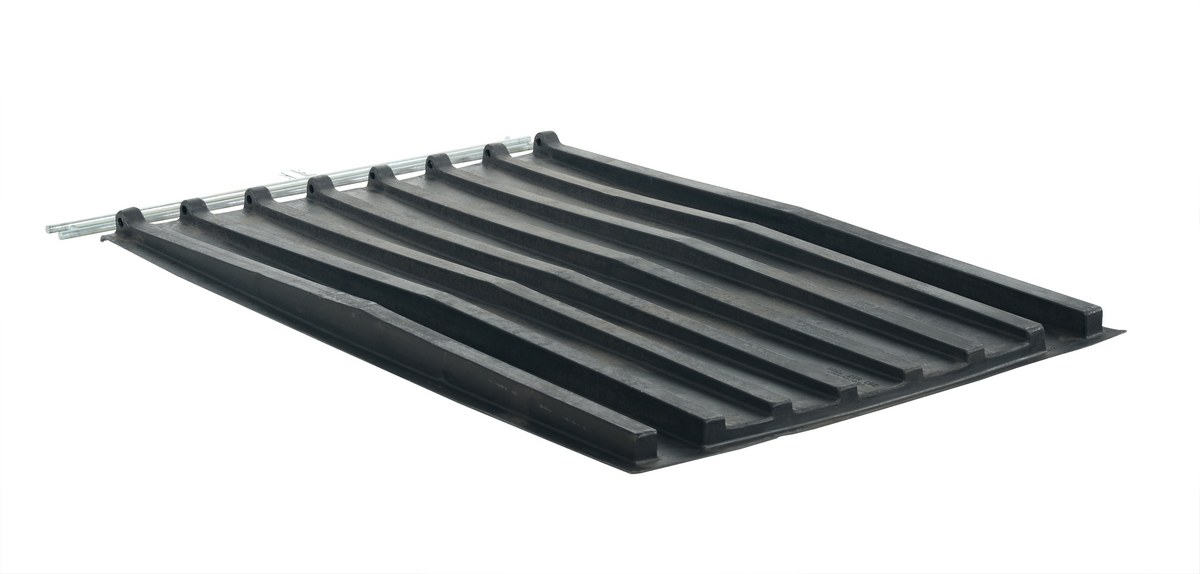

Vestil Polyethylene Heavy Duty D Style Hopper Lid (Use with 1 Cubic Yard Hoppers) Black PLID-D-100. Material: Polyethylene; Color: Black; Assembly: As…
SKU 691215029827

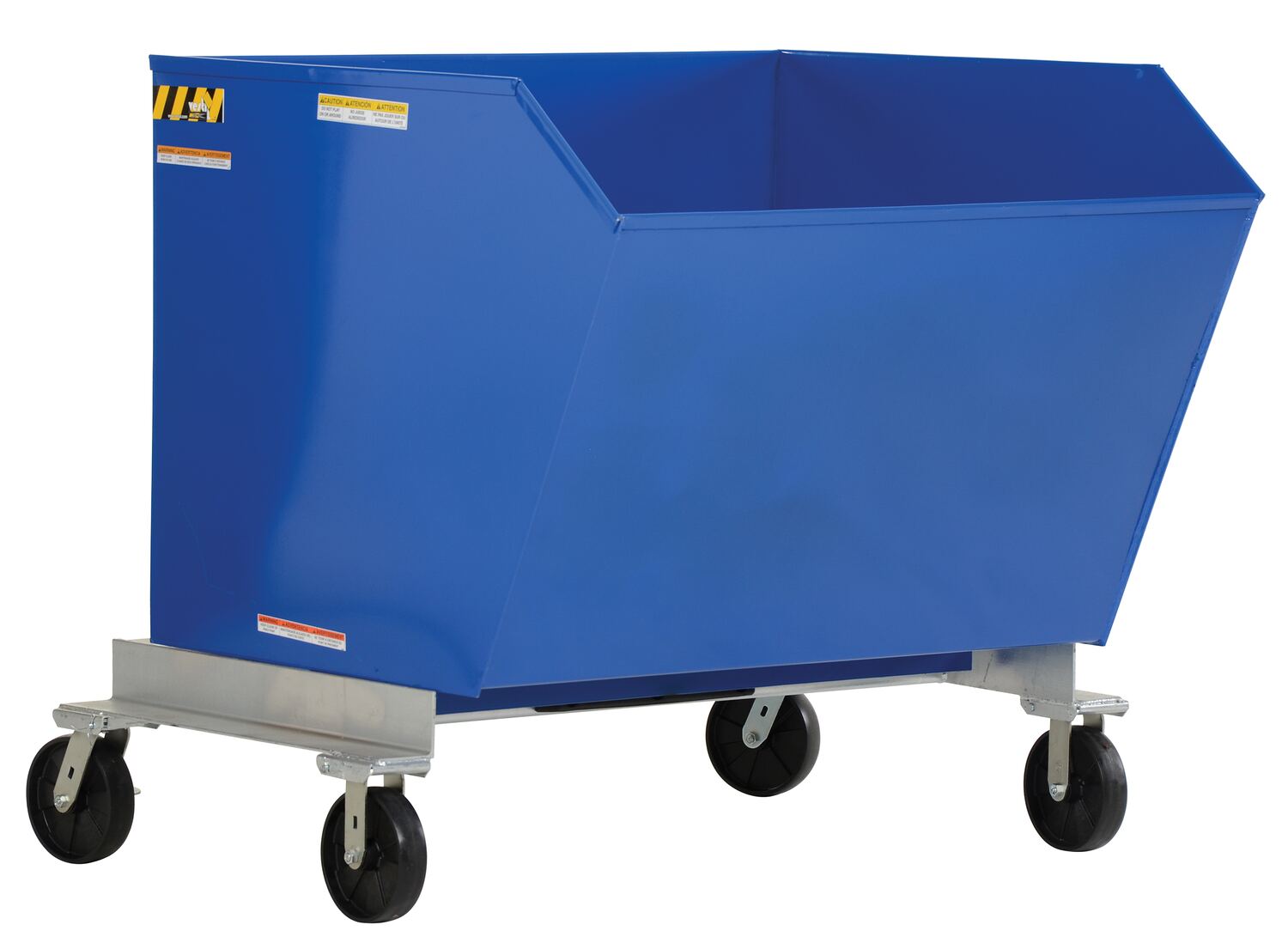

Vestil Steel Portable Tilting Hopper 1-1/2 Cubic Yard 2,000 Lb. Capacity Blue P-HOP-1.5. Material: Steel; Color: Blue; Assembly: Assembly required. Re…
