| Model / reference | CAPACITY | TANK | OVERALL SIZE | HEIGHT / DECK | HEIGHT / HANDLE | MAX INCLINE / HANDLE | WEIGHT / HANDLE |
|---|---|---|---|---|---|---|---|

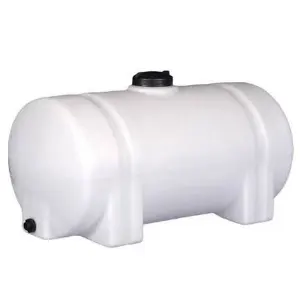

| BM-JRMC-10-TK1 | 1000 | (1) 65 Gal. | 25” x 52.5” | 12.5” | 43” | 6° | 475 lbs |
| BM-JRMC-10-TK2 | 1000 | (2) 35 Gal. | 36” x 52.5” | 12.5” | 43” | 6° | 530 lbs |
| Documented model configurations | 2 |
|---|---|
| CAPACITY | 1000 |
| HEIGHT / DECK | 12.5” |
| HEIGHT / HANDLE | 43” |
| MAX INCLINE / HANDLE | 6° |
Source: 2026 material handling catalog, PDF page 44. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

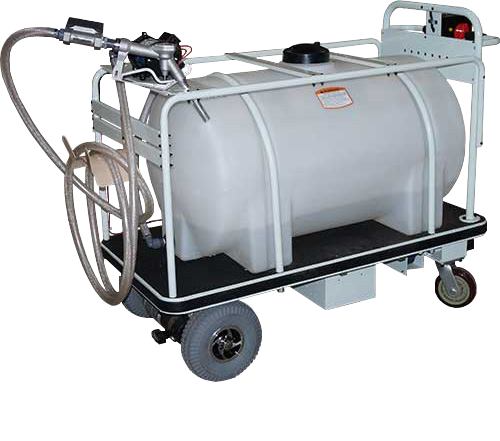

Powered Tanker Carts is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

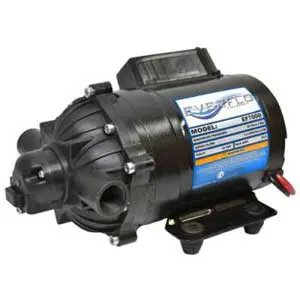

Catalog features and options: Automatic Braking; Automatic Parking Brake; Flashing Reverse Mode Switch; Splash Proof Electronics; Release Brake Drive Inhibit; Charge Mode Drive Inhibit; Throttle Fault Inhibit; Ergonomic handle design; Spring suspension; Non-marking tires; UL/cUL, CE listed smart charging system; Battery charge indicator; Welded frame construction; 10 miles of operation on a single charge; Self-Priming Diaphragm Pump; Inline Fuse Protection; Automatic Shut Off When No Flow; Farm Nozzle with Swivel; Comfortable Ergonomic Handle; Roller Grip Controls; Variable Speed; Adjustable Top Speed; Power Red Light; Emergency Stop Bump Switch.
Reference: 2026 material handling catalog, PDF page 44. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
