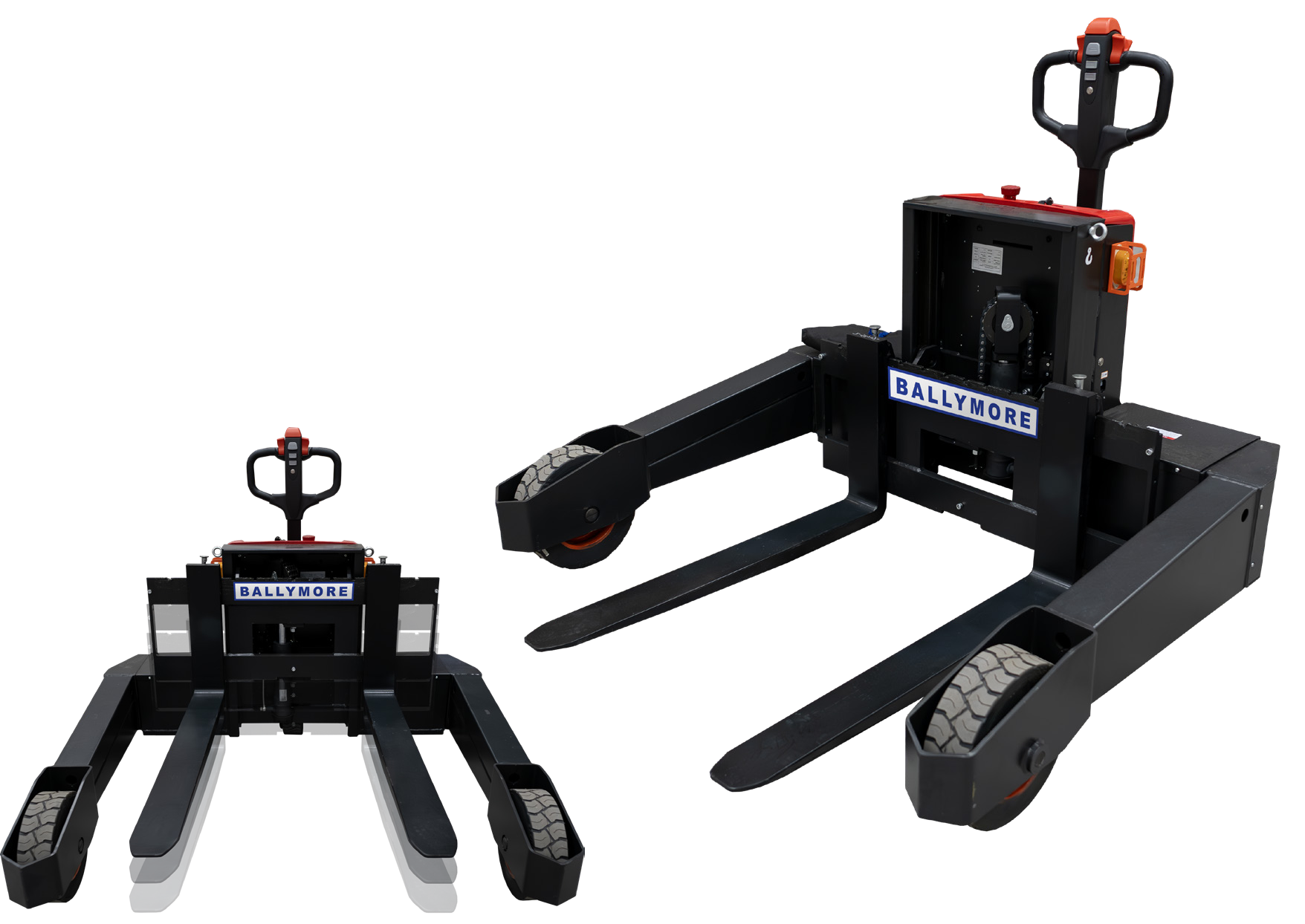

Rough-Terrain Powered Pallet Jack — original catalog photograph

Open an image to inspect its original detail.

Rough-Terrain Powered Pallet Jack — catalog equipment photograph

Specifications & options

Model / referenceWEIGHT CAPACITYFORK WIDTH / MINFORK WIDTH / MAXFORK RAISED MAX / MAXFORK LOWERED / MAXOVERALL LENGTH / MAXOVERALL WIDTH / MAXOVERALL HEIGHT / MAXWEIGHT / MAXPOWER - BATTERIES / MAX
RT-PPJ-5K5,0009.125”40.625”14”2.5”66”63”49”1,41048V/64Ah
WEIGHT CAPACITY5,000
FORK WIDTH / MIN9.125”
FORK WIDTH / MAX40.625”
FORK RAISED MAX / MAX14”
FORK LOWERED / MAX2.5”
OVERALL LENGTH / MAX66”
OVERALL WIDTH / MAX63”
OVERALL HEIGHT / MAX49”
WEIGHT / MAX1,410
POWER - BATTERIES / MAX48V/64Ah
Catalog feature / optionCapacity = 5,000 lbs.

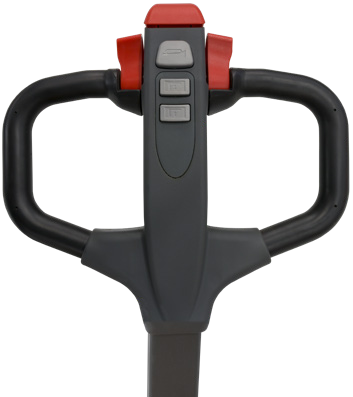

Catalog feature / optionAll-in-one control handle for loading dock stearing, movement forward and reverse and platform raising and lowering
Catalog feature / optionHeavy Duty Capacity– 5,000 lbs.
Catalog feature / optionRough Terrain Treaded RT Solid Tires
Catalog feature / optionConvenient 110 volt charging
Catalog feature / optionBuilt in cycle counter A L L I N O N E H A N D C O N T R O L S 5,000 Lb. Capacity!

Source: 2026 material handling catalog, PDF page 13. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Rough-Terrain Powered Pallet Jack is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Fits through 42” doors for indoor storage; Powers trailer running lights for visibility.; Equipped with a flashing light for safety.; Operates on flat, clear surfaces (concrete/asphalt).; Proportional forward/reverse thumb controls.Forward and Reverse controls are proportional to how far the thumb controls are moved; Capacity = 5,000 lbs.; Powered in forward or reverse directions; All-in-one control handle for loading dock stearing, movement forward and reverse and platform raising and lowering; Heavy Duty Capacity– 5,000 lbs.; Rough Terrain Treaded RT Solid Tires; Numerous safety features including emergency stop button; Convenient 110 volt charging; Battery power indicator; Built in cycle counter A L L I N O N E H A N D C O N T R O L S 5,000 Lb. Capacity!.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 13. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
