Open an image to inspect its original detail.
| Model / reference | Type | Capacity Load centre | Min. height (column 1) | Min. height (column 2) | Platform size | Load wheel | Steering wheel | Net weight |
|---|---|---|---|---|---|---|---|---|
| M100S | Manual | 100kg | 220 lbs 235mm | 9.2” | 1500mm | 59” | 130mm | 5.2” | 470mm x 600mm | 18.5” x 23.6” | ø75 | 2.9” | ø125 | 4.2” | 50kg | 110lbs |
| M200S | Manual | 200kg | 440 lbs 235mm | 9.2” | 1500mm | 59” | 130mm | 5.2” | 470mm x 600mm | 18.5” x 23.6” | ø75 | 2.9” | ø125 | 4.2” | 60kg | 132lbs |
| Documented model configurations | 2 |
|---|---|
| Type | Manual |
| Min. height (column 1) | 1500mm | 59” |
| Min. height (column 2) | 130mm | 5.2” |
| Platform size | 470mm x 600mm | 18.5” x 23.6” |
| Load wheel | ø75 | 2.9” |
| Steering wheel | ø125 | 4.2” |
| Catalog feature / option | With standard PE platform, stainless steel platform as option |
| Catalog feature / option | Quick change attachment options available Stainless Steel Work Positioner |
Source: 2019 sanitary equipment catalog, PDF page 28. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

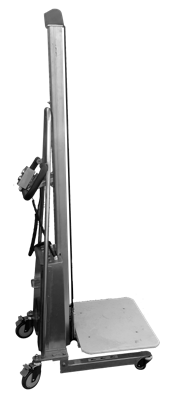

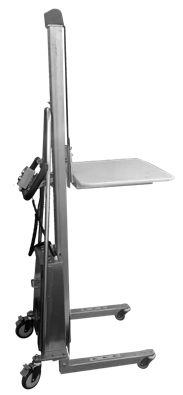

Stainless Steel Electric Work Positioners is presented here with the configurations documented in the 2019 sanitary equipment catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: SUS304 material, good for corrosive acids application; Ideal for use in narrow aisles and confined spaces; Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlet; Operated via a manual hand winch; Auto brake system prevents uncontrolled lowering; With standard PE platform, stainless steel platform as option; Quick change attachment options available Stainless Steel Work Positioner.
The source describes standard and custom equipment. Confirm the current construction, control system, finish, installation details and selected operating limits with your quote.
Reference: 2019 sanitary equipment catalog, PDF page 28. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2019 sanitary equipment catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
