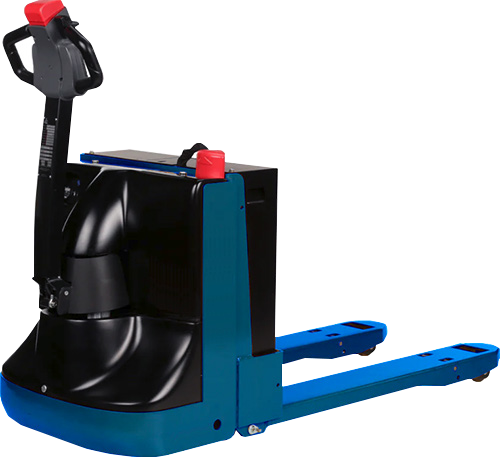

Weighing Pallet Truck — MJWPT45 — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Model / reference	CAPACITY	HEIGHT / DOWN	HEIGHT / UP	FORKS / OD	FORKS / L	TURNING RADIUS / L	OVERALL LENGTH / L
BM-MJWPT-45	4500	3.25”	8”	22”/27”	45.5”	66”	70.5”

CAPACITY	4500
HEIGHT / DOWN	3.25”
HEIGHT / UP	8”
FORKS / OD	22”/27”
FORKS / L	45.5”
TURNING RADIUS / L	66”
OVERALL LENGTH / L	70.5”
Catalog feature / option	3.25” lowered height
Catalog feature / option	Heavy gauge tapered forks
Catalog feature / option	Poly load & drive wheels
Catalog feature / option	48” Load Backrest
Catalog feature / option	Fork Entry Rollers

Source: 2026 material handling catalog, PDF page 42. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Weighing Pallet Truck — MJWPT45 is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

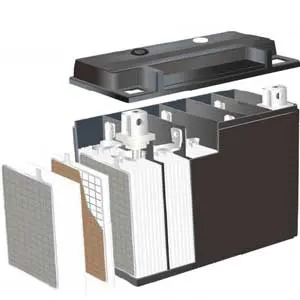

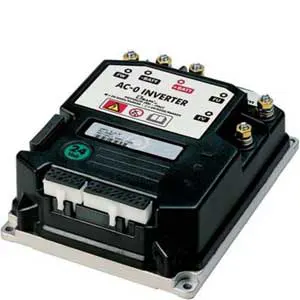

Catalog features and options: Clearly decaled lever operation; 3.25” lowered height; Heavy gauge tapered forks; Vertically mounted drive motor is directly mounted to gear housing; 24V ZAPI travel controller; Integral AGM batteries; Quick disconnect power cut off; Easily removable two piece power head cover; Electromagnetic brake with neutral braking; Poly load & drive wheels; Thumb control travel function; Lift & lower buttons; Eight easily accessed grease zerks; Battery discharge indicator; Key switch; Belly button reversing switch; Horn ADDITIONAL OPTIONS:; 48” Load Backrest; Cold Conditioning; Rubber Lug Drive Tire; Poly Traction Tire; Fork Entry Rollers; Stability Caster; 8.1” Battery Compartment.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 42. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

Pallet Trucks, Stackers & Lift Trucks

Weighing Pallet Truck — MJWPT45

SKU / model reference: BM-MJWPT-45

Manufacturer: Ballymore

Weighing Pallet Truck — MJWPT45. CAPACITY: 4500. HEIGHT / DOWN: 3.25”. HEIGHT / UP: 8”.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

CAPACITY: 4500
HEIGHT / DOWN: 3.25”
HEIGHT / UP: 8”
FORKS / OD: 22”/27”
FORKS / L: 45.5”

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
