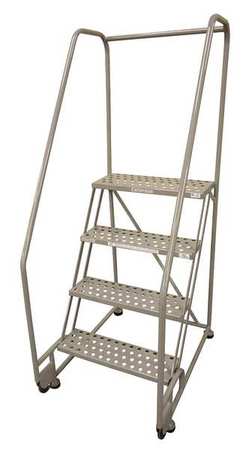

Original catalog photograph. Confirm the selected model and configuration with your quote.
| Load Capacity | 450 lb. |
|---|---|
| Platform Height | 40″ |
| Overall Height | 70″ |
| Number of Steps | 4 |
| Platform Width | 16″ |
| Platform Depth | 10″ |
| Material | Steel |
| Rear Exit | No |
| Green Environmental Attribute | Minimum 30% Post-Consumer Recycled Content |
| Climbing Angle | 59 Degrees |
| Handrail Height | 30″ |
| Bottom Width | 20″ |
| Item | Tilt and Roll Ladder |
| Base Depth | 37″ |
| Includes | 2-1/2″ Rubber Pads |
| Finish | Powder Coated |
| Ladder Actuation | Tilt and Roll |
| Color | Gray |
| Step Tread | Perforated |
| Step Width | 16″ |
| Handrails Included | Yes |
| Assembled/Unassembled | Assembled |
| Standards | OSHA 1910.29 and ANSI A14.7 |
| Step Depth | 7″ |
| Country of Origin (subject to change) | United States |
Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.
PRODUCT INFORMATION
Tilt and Roll Ladder, Material Steel, Platform Height 40 In., Handrails Included Yes, Handrail Height 30 In., Overall Height 70 In., Number of Steps 4, Assembled, Load Capacity 450 lb., Step Tread Perforated, Platform Depth 10 In., Platform Width 16 In., Bottom Width 20 In., Base Depth 37 In., Climbing Angle 59 Degrees , Step Depth 7 In., Step Width 16 In., Ladder Actuation Tilt and Roll, Finish Powder Coated, Color Gray, Standards OSHA 1910.29 and ANSI A14.7, Includes 2-1/2 In. Rubber Pads
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Load Capacity: 450 lb.; Platform Height: 40″; Overall Height: 70″. Confirm the complete selected configuration before ordering.
Include the product name and SKU G3002030, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.
Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
