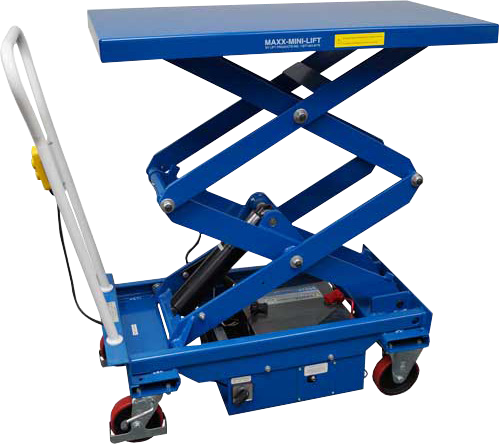

Battery-Powered Hydraulic Lift Carts — MMLE Series — catalog equipment photograph

Open an image to inspect its original detail.

Battery-Powered Hydraulic Lift Carts — MMLE Series — catalog equipment photograph

Specifications & options

Model / referenceVERTICAL TRAVELCAPACITYHEIGHT / MINCAPACITY / HEIGHT / MAXPLATFORM SIZE / MAXWEIGHT / MAX
BM-MMLE-100182,200 lbs19.337.320.5 x 39.8372 lbs
BM-MMLE-100-XL312,200 lbs174831.5 x 47.3473 lbs
BM-MMLE-50D441,100 lbs19.563.520.5 x 39.8436 lbs
BM-MMLE-80D371,760 lbs205720.5 x 39.8458 lbs
Documented model configurations4

Source: 2026 material handling catalog, PDF page 30. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Battery-Powered Hydraulic Lift Carts — MMLE Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Ergonomic push handle; Push button controls; (2) front rigid poly casters; (2) rear swivel poly casters; Brakes on swivel casters; Onboard 12V battery; Trapped top/bottom rollers; Maintenance safety bars; Maintenance isolator switch; Internal automatic charger; Battery discharge indicator; Emergency relief valve; Quality fit and finish.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 30. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
