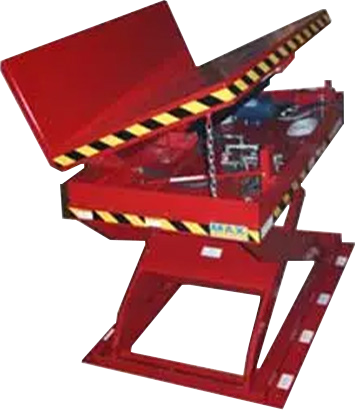

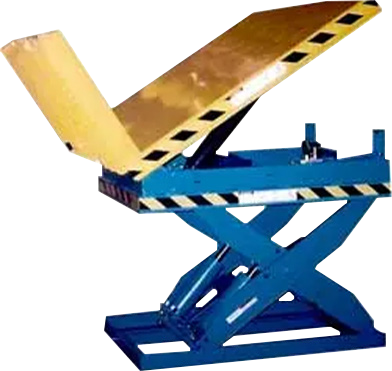

Combined Hydraulic Lift-and-Tilt Tables — MLT45 Series — catalog equipment photograph

Open an image to inspect its original detail.

Combined Hydraulic Lift-and-Tilt Tables — MLT45 Series — catalog equipment photographCombined Hydraulic Lift-and-Tilt Tables — MLT45 Series — catalog equipment photographCombined Hydraulic Lift-and-Tilt Tables — MLT45 Series — catalog equipment photograph

Specifications & options

Model / referenceReference status
BM-MLT45-2K-53R-2448-FPrinted configuration example; confirm the final ordered code
B - PLATFORM HEIGHT
53R =53”
E - TILT
45 = 45º60 = 60º90 = 90º
A - CAPACITY
2K = 20003K = 3000
C - PLATFORM WxL (IN INCHES)
2448 = 24x482460 = 24x604848 = 48x48
4860 = 48x603660 = 36x603648 = 36x48
B - PLATFORM HEIGHT
65R = 65”
E - TILT
45 = 45º60 = 60º90 = 90º
A - CAPACITY
2K= 20004K= 40005K= 50002K= 20003K= 30004K= 40002K= 20003K= 30004K= 4000
C - PLATFORM WxL (IN INCHES)
2564 = 25x642564 = 25x642564 = 25x64
4864 = 48x644864 = 48x644864 = 48x64
3664 = 36x643664 = 36x643664 = 36x64
Reference statusPrinted configuration example; confirm the final ordered code
Catalog feature / option115V operating control voltage
Catalog feature / optionNEMA - 1 prewired controls and electrical connectors Control box contains contactor, control transformer, thermal overload and fuse
Catalog feature / optionCustom Platform Designs

Source: 2026 material handling catalog, PDF page 36. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Combined Hydraulic Lift-and-Tilt Tables — MLT45 Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: 1.5 HP intermittent duty TENV super torque motor; 115V operating control voltage; NEMA constant pressure. Magnet backed up-down push button control station with 10’ straight or coiled cord; All controller components meet UL and/or CSA specifications; Cylinders with internal stops; 10’ power cord (connector not included); Integral safety restraint maintenance bars; Tilt limit switch; Powered up. Gravity down on 45° and powered down on 60° & 90° tilt; S.A.E. hoses and fittings; NEMA - 1 prewired controls and electrical connectors Control box contains contactor, control transformer, thermal overload and fuse; Hard, chrome plated, polished shafting hydraulic cylinder piston rods; Surfaces degreased, descaled and finished with Safety Yellow and Blue enamel; Smooth steel top with yellow and black safety strips; Internal gear pump with check valve, relief valve, solenoid valve; Includes hydraulic oil and filter; Up-Down Push Button with Key Lock-Out; Adjustable Lift Limit Switch; Adjustable Tilt Limit Switch; Custom Platform Designs; Hydraulic Fuse; Remote Power Unit Pump, Motor & Tank; Adjustable Flow Valve for Lowering; Low Temperature Hydraulic Oil.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 36. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
