PRODUCT INFORMATION

Equipment overview

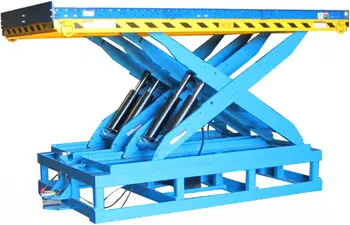

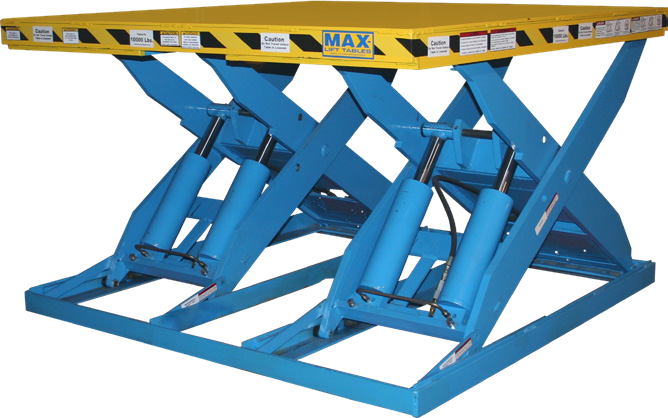

Double-Wide Hydraulic Scissor Lift Tables — MXW Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

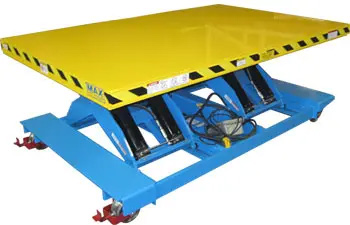

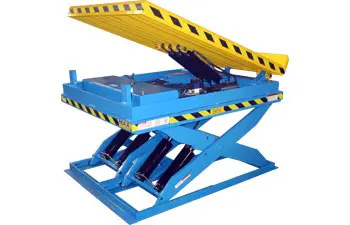

Catalog features and options: Internally mounted 1.5 HP 115/230V-I-60 or 230/460-3-60 intermittent duty TENV super torque motor; 115V operating control voltage; NEMA constant pressure magnet backed up-down push button control station with 10’ straight or coiled cord; Cylinders with internal stops; 10’ power cord (connector not included); Integral safety restraint maintenance bars; S.A.E. hoses and fittings; NEMA - 1 prewired controls and electrical connectors. Control box contains contactor, control transformer, thermal overload and fuse; Hard, chrome plated, polished shafting hydraulic cylinder piston rods; Surfaces degreased, descaled and finished with Safety Yellow and Blue enamel; Smooth steel top with yellow and black safety strips; Internal gear pump with check valve, relief valve, solenoid valve; Includes hydraulic oil and filter; Up-Down Push Button with Key Lock-Out; Adjustable Limit Switch; Adjustable Lower Limit Switch; Remote Power Unit Pump, Motor & Tank; Adjustable Flow Valve for Lowering; Low Temperature Hydraulic Oil; Diamond Tread Deck; Tilting Top; Low Profile Outboard Mounting of Casters; All Swivel Lock Casters; Floor Lock.
