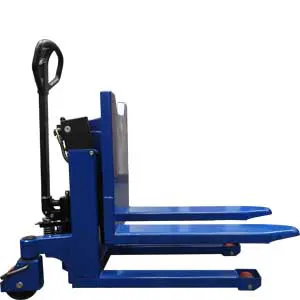

Electric Mobile Tilters — MMTLE Series — catalog equipment photograph

Open an image to inspect its original detail.

Electric Mobile Tilters — MMTLE Series — catalog equipment photographElectric Mobile Tilters — MMTLE Series — catalog equipment photographElectric Mobile Tilters — MMTLE Series — catalog equipment photograph

Specifications & options

Model / referenceCAPACITYTILTVERTICAL TRAVELLOWERED HEIGHTFORK / IDFORK / ODFORK / LSPEED (SEC) / LIFTSPEED (SEC) / TILTCYLINDERS / TILTWEIGHT / TILT
BM-MMTL-10E220090°11”3.35”9.2”22”31.5”2.672442 lbs
CAPACITY2200
TILT90°
VERTICAL TRAVEL11”
LOWERED HEIGHT3.35”
FORK / ID9.2”
FORK / OD22”
FORK / L31.5”
SPEED (SEC) / LIFT2.6
SPEED (SEC) / TILT7
CYLINDERS / TILT2
WEIGHT / TILT442 lbs
Catalog feature / option2.5”ø rigid poly load casters

Source: 2026 material handling catalog, PDF page 37. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Electric Mobile Tilters — MMTLE Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

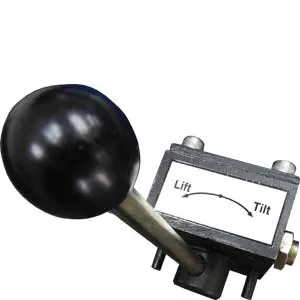

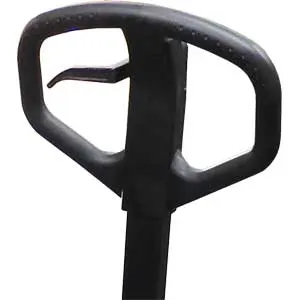

Catalog features and options: Independent lift and tilt functions; Ergonomic handle; LIFT/LOWER buttons on handle; Tilt UP/DOWN hand pendant controls; External automatic charger included; Battery Discharge Indicator; BDI On/Off switch; Emergency stop switch; Caster brakes on swivel casters; 6”ø swivel poly steer casters; 2.5”ø rigid poly load casters; Offset handle for tight maneuverability; Easily removable back plate; 12V maintenance free sealed battery; 105 cycles per full charge.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 37. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
