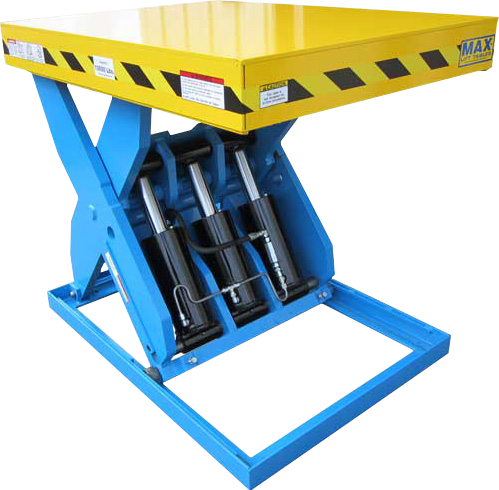

Heavy-Duty Hydraulic Scissor Lift Tables — MHD Series — catalog equipment photograph

Open an image to inspect its original detail.

Heavy-Duty Hydraulic Scissor Lift Tables — MHD Series — catalog equipment photographHeavy-Duty Hydraulic Scissor Lift Tables — MHD Series — catalog equipment photographHeavy-Duty Hydraulic Scissor Lift Tables — MHD Series — catalog equipment photograph

Specifications & options

Model / referenceVERTICAL TRAVELCAPACITYHEIGHT (+/- 0.125”) / LOWEREDHEIGHT (+/- 0.125”) / RAISEDLIFT SPEED (SEC) / RAISEDBASE FRAME / RAISEDMOTOR (HP) / RAISEDVOLTAGE / RAISED
BM-MHD230-8K-44R-364834.5”80009.5”44”2936” x 48”2230
BM-MHD460-10K-44R-364834.5”100009.5”44”4436” x 48”2460
Documented model configurations2
VERTICAL TRAVEL34.5”
HEIGHT (+/- 0.125”) / LOWERED9.5”
HEIGHT (+/- 0.125”) / RAISED44”
BASE FRAME / RAISED36” x 48”
MOTOR (HP) / RAISED2
Catalog feature / option115V operating control voltage
Catalog feature / optionControl box contains contactor, control transformer, thermal overload, and fuse
Catalog feature / optionFork Pockets
Catalog feature / optionHandrail Gate

Source: 2026 material handling catalog, PDF page 25. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Heavy-Duty Hydraulic Scissor Lift Tables — MHD Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

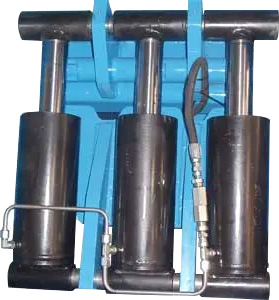

Catalog features and options: 1.5” x 8” solid scissor arm; Internal 3 HP intermittent duty TENV super torque motor; 115V operating control voltage; NEMA constant pressure magnet backed up-down push button control station; NEMA-1 prewired controls and electrical connectors; Control box contains contactor, control transformer, thermal overload, and fuse; Cylinders with internal stops; 10’ power cord (connector not included); Hard, chrome-plated, polished shafting hydraulic cylinder piston rods; Surfaces degreased, descaled, and finished with Safety Yellow and Blue enamel; Smooth steel top with yellow and black safety stripes; S.A.E. hoses and fittings; Integral safety restraint maintenance bars; Internal gear pump with check valve, relief valve, and solenoid valve; Includes hydraulic oil and filter; Key Lock-Out; Adjustable Limit Switch; Adjustable Lower Limit Switch; Remote Power Unit; Adjustable Flow Valve; Low Temperature Hydraulic Oil; Fork Pockets; Hydraulic Fuse; Handrail Gate.

Model and option notes: ADD -F FOR FOOT.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 25. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
