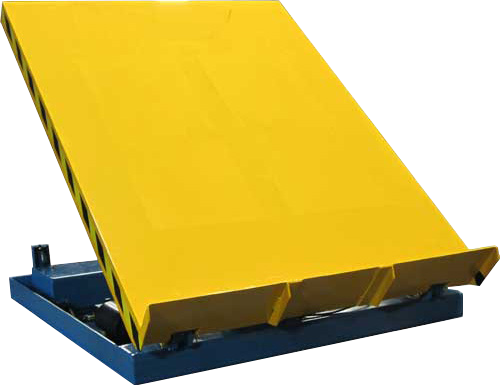

Hydraulic Tilt Tables — MTT Series — catalog equipment photograph

Open an image to inspect its original detail.

Hydraulic Tilt Tables — MTT Series — catalog equipment photographHydraulic Tilt Tables — MTT Series — catalog equipment photographHydraulic Tilt Tables — MTT Series — catalog equipment photograph

Specifications & options

Model / referenceReference status
BM-MTT-2K-3624-45T-FPrinted configuration example; confirm the final ordered code
A - CAPACITY
2K = 20004K = 40003K = 3000
Zerk Fittings 15 Min. Motor Ribbed Steel Platform Lip
On camroller and pivot points. Regreasable. Lasts longer than lifetimeIntermittent duty. Able to be run for 15 minutes of every hour. Suitable forP b llatform deck is reinforced y ribbed steel to eliminate oad deflection and provideStandard platform lip of 4” holds most containers in place during rotation.
lubricated bearings. Easily serviced.medium and high cycle applications.thfor stable load rotation roughout the stroke of the cylinder.Custom lip lengths and shapes are available for higher load centers.
Reference statusPrinted configuration example; confirm the final ordered code
Catalog feature / optionRibbed steel reinforced platform deck
Catalog feature / option115/230 single or 230/460 3 phase voltage
Catalog feature / option30 amp dedicated circuit is required for 115 volt
Catalog feature / optionThermal overload and fuses in control box
Catalog feature / optionCustom platform sizes
Catalog feature / optionCustom platform shapes

Source: 2026 material handling catalog, PDF page 35. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Hydraulic Tilt Tables — MTT Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

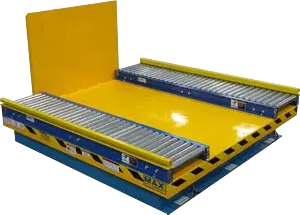

Catalog features and options: 1.5 HP triple duty internal motor; Regreasable zerk fittings on pivot points; Ribbed steel reinforced platform deck; 115/230 single or 230/460 3 phase voltage; 30 amp dedicated circuit is required for 115 volt; 10’ power cord (connector not included); Hydraulic gear pump; Check & solenoid valve, filter and velocity fuse; Color yellow top with blue frame; Powered up / gravity down on 45° tilt; Powered up / powered down on 90° tilt; Tilt limit switch; Push button magnetic back control box; Smooth steel deck with 4” high lip on hinge end; High quality chrome plated cylinder; Control box with magnetic starter transformer; Thermal overload and fuses in control box; Designed for surface or lift table mounting; Custom platform sizes; Custom platform shapes; Conveyor top; Radio controlled lift; Ball transfer top; Removable side walls.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 35. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
