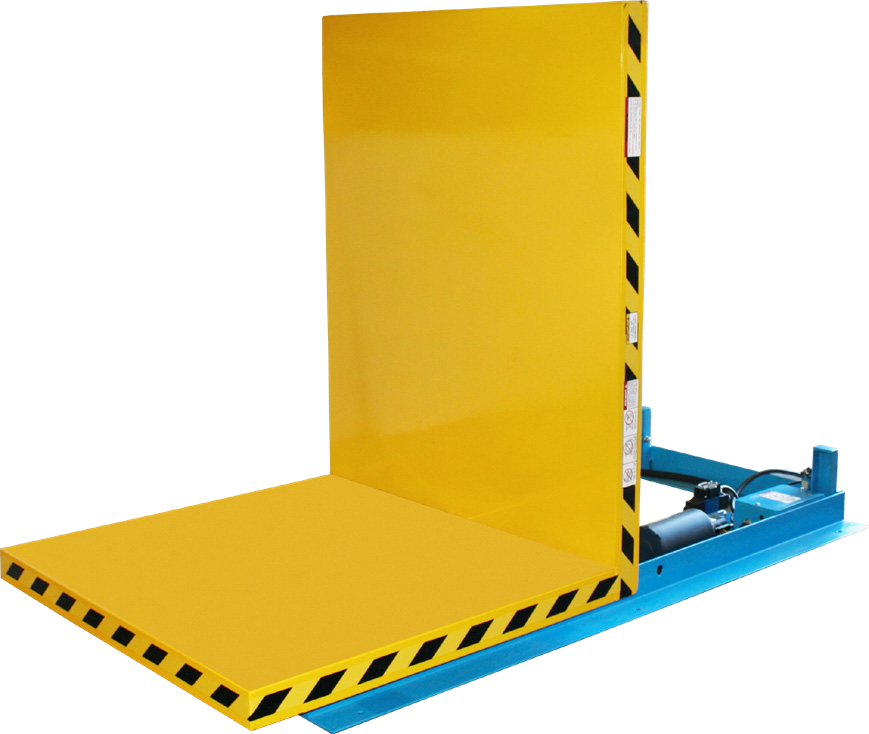

Hydraulic Tilt Upenders — MT Series — catalog equipment photograph

Open an image to inspect its original detail.

Hydraulic Tilt Upenders — MT Series — catalog equipment photographHydraulic Tilt Upenders — MT Series — catalog equipment photographHydraulic Tilt Upenders — MT Series — catalog equipment photograph

Specifications & options

Model / referenceCAPACITYTILTPLATFORM SIZE / MINPLATFORM SIZE / MAXHEIGHT LOWERED / MAXCYLINDERS / MAXMOTOR / MAX
BM-MTU-2K2,000 lbs90°24 x 36120 x 1081011.5 HP
BM-MTU-4K4,000 lbs90°24 x 36120 x 1081021.5 HP
BM-MTU-6K6,000 lbs90°24 x 36120 x 1081031.5 HP
BM-MTU-8K8,000 lbs90°36 x 36120 x 1081042 HP
BM-MTU-10K10,000 lbs90°36 x 36120 x 1081042 HP
Documented model configurations5
TILT90°
PLATFORM SIZE / MAX120 x 108
HEIGHT LOWERED / MAX10
Catalog feature / optionRibbed steel reinforced platform deck
Catalog feature / option115/230 single or 230/460 3 phase voltage
Catalog feature / optionThermal overload and fuses in control box

Source: 2026 material handling catalog, PDF page 34. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Hydraulic Tilt Upenders — MT Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Triple duty 15 min. internal motor; Regreasable zerk fittings on pivot points; Ribbed steel reinforced platform deck; 115/230 single or 230/460 3 phase voltage; 30 amp dedicated circuit is required for 115V; 10’ power cord (connector not included); Hydraulic gear pump; Check & solenoid valve, filter & velocity fuse; Color yellow top with blue frame; Double acting cylinders; Pressure compensated control valve; Tilt limit switch; Push button magnetic back control box; Smooth steel decks; High quality chrome plated cylinder; Control box with magnetic starter transformer; Thermal overload and fuses in control box; Designed for surface or lift table mounting; Tapered toe guards; Lowering beeper; Raised base; Remote power unit; Conveyor top; Special color.

Model and option notes: BM-MTU-2K* 2,000 lbs 90° 24 x 36 120 x 108 10 1 1.5 HP; BM-MTU-4K* 4,000 lbs 90° 24 x 36 120 x 108 10 2 1.5 HP; BM-MTU-6K* 6,000 lbs 90° 24 x 36 120 x 108 10 3 1.5 HP; BM-MTU-8K* 8,000 lbs 90° 36 x 36 120 x 108 10 4 2 HP; BM-MTU-10K* 10,000 lbs 90° 36 x 36 120 x 108 10 4 2 HP; * Contact customer support at 877.543.8776 Each Selection Can Be Purchased With Hand Or Foot Controls; ADD -F FOR FOOT.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 34. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
