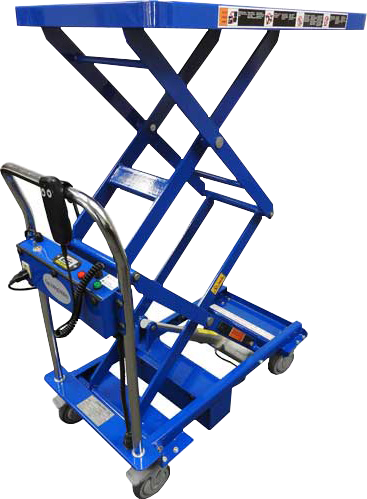

Linear-Actuated Lift Carts — MMLA Series — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Model / reference	VERTICAL TRAVEL	CAPACITY	HEIGHT / MIN	CAPACITY / HEIGHT / MAX	PLATFORM SIZE / MAX	SPEED (SEC) / LOWER	CAPACITY / SPEED (SEC) / LIFT
BM-MMLA151D	34.4	330 lbs	16	50.4	19.7 x 31.5	40	56
BM-MMLA152D	34.4	330 lbs	16	50.4	24 x 35.8	40	56
BM-MMLA251	18.7	550 lbs	14	32.7	19.7 x 31.5	35	41
BM-MMLA252	18.7	550 lbs	14	32.7	24 x 35.8	35	41

Documented model configurations	4

Source: 2026 material handling catalog, PDF page 30. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Linear-Actuated Lift Carts — MMLA Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Die Handling Top; All Swivel Casters; Safety Skirting; Side Mounted Handle; No oil leaks; No hydraulic drift; Quiet operation; Precise actuation; Brakes on rear casters; Onboard 12V battery; Trapped top/bottom rollers; Maintenance safety bars; On/Off Switch; Internal automatic charger; Battery discharge indicator; Green/Red charging lights; All swivel medical casters; Hand controls on 5’ cord; Quality fit and finish.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 30. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

Material Lift & Tilt Tables

Linear-Actuated Lift Carts — MMLA Series

Manufacturer: Ballymore

Linear-Actuated Lift Carts — MMLA Series. Documented model configurations: 4.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

Documented model configurations: 4

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
