Specifications & options

Model / reference	VERTICAL TRAVEL	CAPACITY	HEIGHT / LOWERED	HEIGHT / RAISED	PLATFORM SIZE / RAISED	LIFT SPEED (SEC) / RAISED	BASE FRAME / RAISED	MOTOR (HP) / RAISED	VOLTAGE / RAISED
BM-GLS-2K-35R-4055	30.75”	2000	4.25”	35”	45” DIA.	18	29.5” x 52.75”	1	115

VERTICAL TRAVEL	30.75”
CAPACITY	2000
HEIGHT / LOWERED	4.25”
HEIGHT / RAISED	35”
PLATFORM SIZE / RAISED	45” DIA.
LIFT SPEED (SEC) / RAISED	18
BASE FRAME / RAISED	29.5” x 52.75”
MOTOR (HP) / RAISED	1
VOLTAGE / RAISED	115
Catalog feature / option	External power pack with overload relief valve

Source: 2026 material handling catalog, PDF page 27. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Low-Profile Lift-and-Rotate Scissor Tables is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

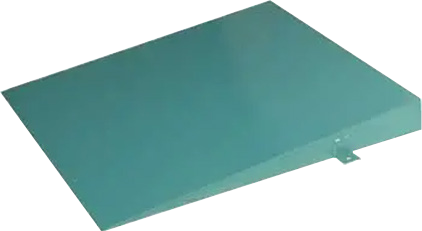

Catalog features and options: Safety perimeter bar stops descent on contact; Reset button if safety bar is triggered; 24V control box with up and down buttons; External power pack with overload relief valve; Remote power unit with 8 ft hoses; Compensated flow valve for OPTIONS: Ramps Square Top Swing Gate Steel-It Paint.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 27. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

Material Lift & Tilt Tables

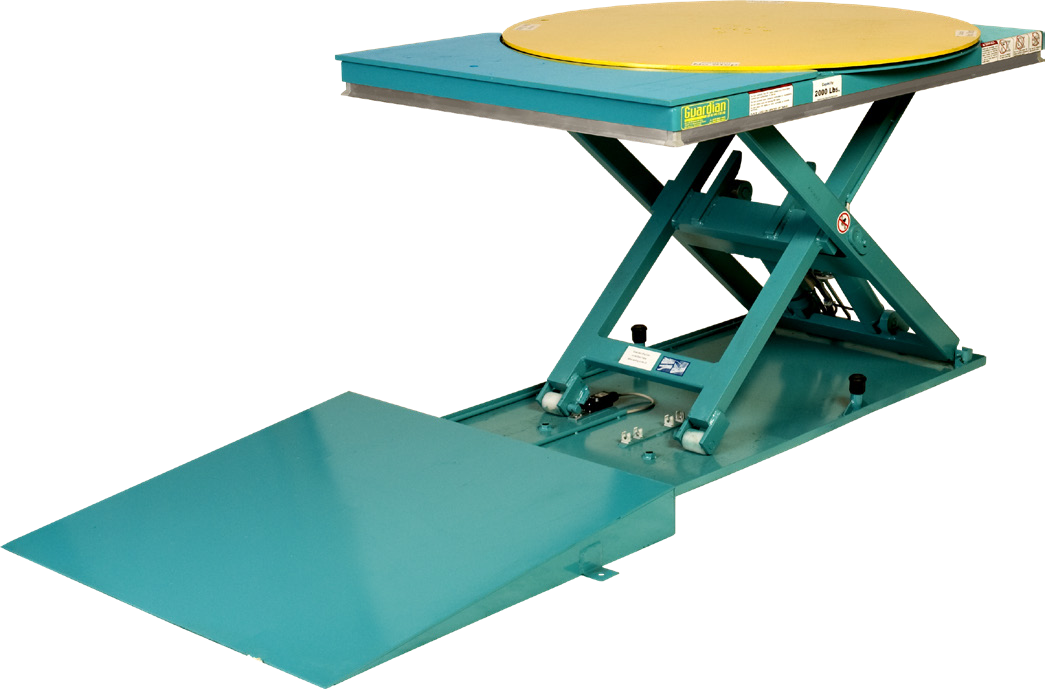

Low-Profile Lift-and-Rotate Scissor Tables

SKU / model reference: BM-GLS-2K-35R-4055

Manufacturer: Ballymore

Low-Profile Lift-and-Rotate Scissor Tables. VERTICAL TRAVEL: 30.75”. CAPACITY: 2000. HEIGHT / LOWERED: 4.25”.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

VERTICAL TRAVEL: 30.75”
CAPACITY: 2000
HEIGHT / LOWERED: 4.25”
HEIGHT / RAISED: 35”
PLATFORM SIZE / RAISED: 45” DIA.

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
