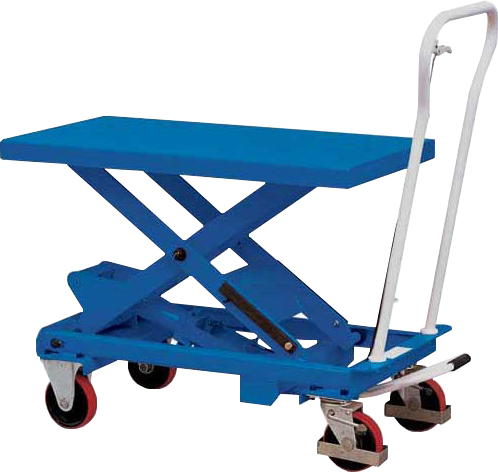

Manual Hydraulic Lift Carts — MML Series — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Model / referenceVERTICAL TRAVELCAPACITYHEIGHT / MINHEIGHT / MAXPLATFORM SIZE / MAXOVERALL SIZE / MAXHANDLE HEIGHT / MAX# OF PUMPS / MAXWEIGHT / MAX
BM-MML-1520"33010"30"17.8" X 27.5"17.8" X 37.5"39"1690 lbs
BM-MML-2524"55012"36"19.8" X 32.8"19.8" X 39.8"43"25160 lbs
BM-MML-5022"110017"39"20.5" X 39.8"20.5" X 46.8"44"44172 lbs
BM-MML-50XL-N27.5"110015.8"43.3"24.5" X 60"24.5" X 70"44"62225 lbs
BM-MML-50XL-W32.3"110014.5"46.8"31.5" X 47.3"31.5" X 57.3"44"65260 lbs
BM-MML-7522"165017"39"20.5" X 39.8"20.5" X 49.8"44"65369 lbs
BM-MML-10022"220017"39"20.5" X 39.8"20.5" X 49.8"44"75301 lbs
BM-MML-100XL31"220017"48"31.5" X 39.8"31.5" X 57.3"44"96358 lbs
BM-MML-30D45"66017"62"20.5" X 39.8"20.5" X 49.8"44"53330 lbs
BM-MML-50D45"110017"62"20.5" X 39.8"20.5" X 49.8"44"68370 lbs
Documented model configurations10
Catalog feature / optionCylinder overload protection
Catalog feature / optionChain pulley quietly lifts platform

Source: 2026 material handling catalog, PDF page 29. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Manual Hydraulic Lift Carts — MML Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Conforms to EN1757, CE marked; (2) rear swivel casters with brakes; (2) front rigid casters; Variable lowering speed; Rubber traction foot pump; Foot pump folds up for storage; Chrome plated lift cylinder; Cylinder overload protection; Smooth steel top with backrest; Chain pulley quietly lifts platform; Push handle OPTIONS: Foot Pump Release Valve Chain Pulley Secure Top BM-MMS-20 25”; Die Handling Top; All Swivel Casters; Safety Skirting; Side Mounted Handle MML-50.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 29. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
