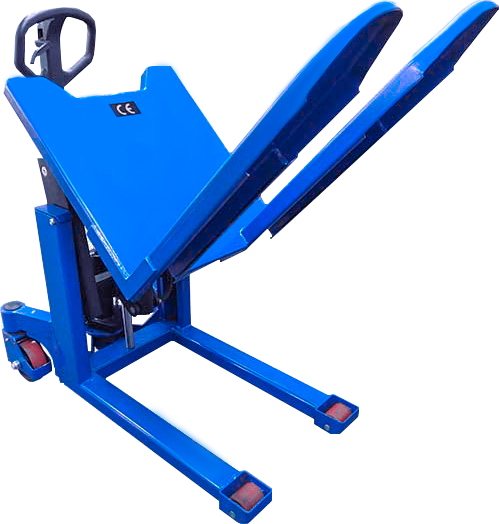

Manual Mobile Tilters — MMTL Series — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Model / reference	CAPACITY	TILT	VERTICAL TRAVEL	LOWERED HEIGHT	HEIGHT / ID	HEIGHT / OD	HEIGHT / L	# PUMPS / LIFT	# PUMPS / TILT	CYLINDERS / TILT	WEIGHT / TILT
BM-MMTL-10M	2200	90°	11”	3.35”	9.2”	22”	31.5”	18	56	2	392 lbs

CAPACITY	2200
TILT	90°
VERTICAL TRAVEL	11”
LOWERED HEIGHT	3.35”
HEIGHT / ID	9.2”
HEIGHT / OD	22”
HEIGHT / L	31.5”
# PUMPS / LIFT	18
# PUMPS / TILT	56
CYLINDERS / TILT	2
WEIGHT / TILT	392 lbs
Catalog feature / option	2.5”ø rigid poly load casters

Source: 2026 material handling catalog, PDF page 37. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Manual Mobile Tilters — MMTL Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Independent lift and tilt functions; Ergonomic handle; Raise, lower, neutral lever on handle; “Lift” or “Tilt” selector lever; Handle rotation lock; Rotation lock release foot pedal; Caster brakes on swivel casters; 6”ø swivel poly steer casters; 2.5”ø rigid poly load casters.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 37. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

Material Lift & Tilt Tables

Manual Mobile Tilters — MMTL Series

SKU / model reference: BM-MMTL-10M

Manufacturer: Ballymore

Manual Mobile Tilters — MMTL Series. CAPACITY: 2200. TILT: 90°. VERTICAL TRAVEL: 11”.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

CAPACITY: 2200
TILT: 90°
VERTICAL TRAVEL: 11”
LOWERED HEIGHT: 3.35”
HEIGHT / ID: 9.2”

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
