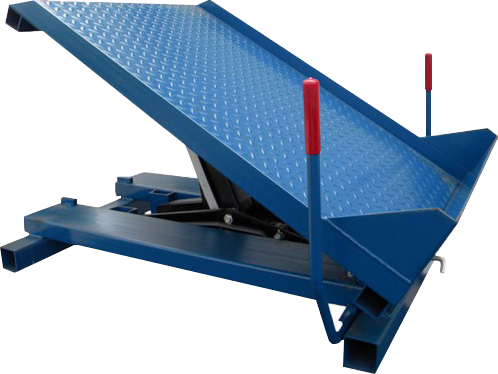

Manual Tote Tilters — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Model / referenceReference status
BM-LPDW-2K-2436Printed configuration example; confirm the final ordered code
A - CAPACITY
2K = 2,0002.5K = 2,5003K = 3,000
B - PLATFORM WxL (IN INCHES)
2436 = 24x362442 = 24x422448 = 24x48
3636 = 36x363642 = 36x423648 = 36x48
4836 = 48x364824 = 48x244848 = 48x48
MODEL #CAPACITYTILTBINOVERALLCHUTE LENGTH
WLHFT3WLH
BM-LPPH-30-122,0000-40°2430125264019.216
BM-LPPH-36-123,0000-40°2436126264619.216
BM-LPPH-36-163,0000-40°2436168264623.216
BM-LPPH-40-163,5000-40°28401610.3305023.216
Reference statusPrinted configuration example; confirm the final ordered code
Catalog feature / optionSide edges to contain load
Catalog feature / optionFork Pockets
Catalog feature / optionDiamond tread deck
Catalog feature / optionCustom platform sizes

Source: 2026 material handling catalog, PDF page 33. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Manual Tote Tilters is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Tilt Range: 0° - 35°; Tilt Adjustment 1° per pump; Dual Pump Levers for easy adjustment; Manual Lowering control valve; Side edges to contain load; Fork Pockets; 4” Lip on hinged ends; Diamond tread deck; Custom platform sizes; Extended side walls; 6”ø casters BM - LPDW - 2K- 2436.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 33. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
