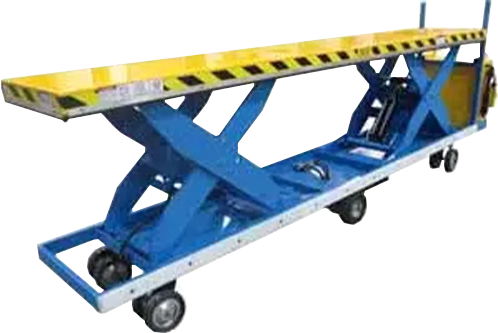

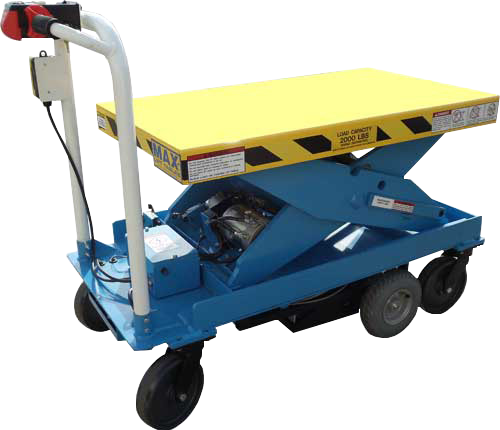

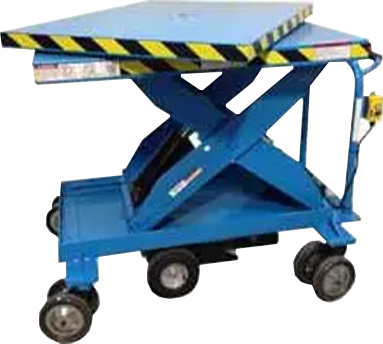

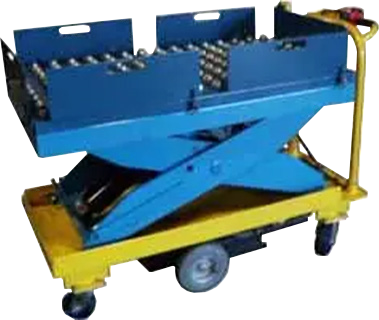

Mobile Hydraulic Lift Tables — MM Series — catalog equipment photograph

Open an image to inspect its original detail.

Mobile Hydraulic Lift Tables — MM Series — catalog equipment photographMobile Hydraulic Lift Tables — MM Series — catalog equipment photographMobile Hydraulic Lift Tables — MM Series — catalog equipment photograph

Specifications & options

Model / referenceReference status
BM-MM-2K-42R-2436-HPrinted configuration example; confirm the final ordered code
A - CAPACITY
2K = 2,0002.5k = 2,500
B - PLATFORM HEIGHT
42.25R = 42.25”54.25R = 54.25”66.25R = 66.25”
C - PLATFORM WxL (IN INCHES)
2641 = 26x412648 = 26x482660 = 26x603641 = 36x412648 = 26x482660 = 26x602672 = 26x723648 = 36x482664 = 26x642672 = 26x722684 = 26x843664 = 36x64
3648 = 36x483660 = 36604841 = 48x414848 = 48x483660 = 36x603672 = 36x724848 = 48x484860 = 48x603672 = 36x723684 = 36x844864 = 48x644872 = 48x72
4860 = 48x602436 = 24x364872 = 48x722448 = 24x484884 = 48x842564 = 25x64
LOWERED HEIGHT (IN INCHES)
18.2518.2518.25
Reference statusPrinted configuration example; confirm the final ordered code
Catalog feature / option24V DC operating control voltage

Source: 2026 material handling catalog, PDF page 32. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Mobile Hydraulic Lift Tables — MM Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Heavy duty 24V DC electronics and drive motor; 24V DC operating control voltage; Constant pressure up-down push controls; Cylinders with internal stops; S.A.E. hoses and fittings; Integral safety restraint maintenance bars; NEMA1 prewired controls & electrical connectors; Control box contains contactor and fuses; Chrome plated shafting cylinder piston rods; Surfaces degreased & descaled; Surfaces finished with Yellow & Blue enamel; Top with yellow & black safety strips; Gear pump with check, relief, & solenoid valve; Lift inactive while cart is in motion; Limited speed while lift is raised; Includes hydraulic oil and filter; Roller variable speed forward/reverse controls; Rabbit/turtle switch for top speed control; Power on green light; Flashing light when battery is low; Enters “creep” mode when battery is low; Emergency stop bump switch; Horn and key switch; Automatic parking brake (Electro- mechanical).

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 32. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
