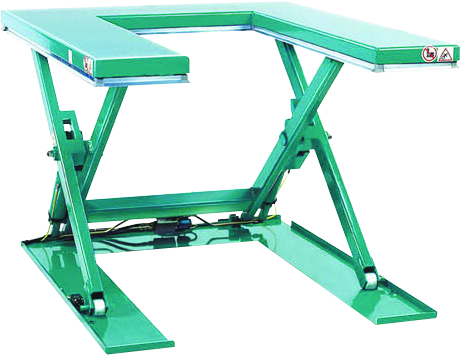

Open-Entry U and E Scissor Lift Tables — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Model / referenceVERTICAL TRAVELCAPACITYHEIGHT / LOWEREDHEIGHT / RAISEDPLATFORM SIZE / RAISEDBASE FRAME / RAISEDLIFT SPEED (SEC) / RAISED
BM-GLPU-2.2K-34R-455630.75”22003.13”33.88”44.88” x 56”42” x 52”18
BM-GLPU-3.3K-33R-466029.5”33003.63”33.125”45.63” x 59.88”43” x 56.25”25
BM-GLPE-2.2K-34R-565030.75”22003.13”33.88”55.88” x 50”52” x 54”18
Documented model configurations3
Catalog feature / optionLoad and unload pallets without a ramp
Catalog feature / optionExternal power pack with overload relief valve

Source: 2026 material handling catalog, PDF page 27. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Open-Entry U and E Scissor Lift Tables is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Compensated flow valve for controlled lowering; Mechanical blocks for safe maintenance; 115V single phase standard; Upper limit switch; Single acting cylinders with drainage and check valve; Scissor safety clearance to prevent trapping; Self lubricating pivot bushings; U-Lift: Designed for use with a 21” wide pallet jack; E-Lift: Designed for use with a 27” wide pallet jack; Load and unload pallets without a ramp; Safety perimeter stops descent on contact; 24V control box with up and down buttons; Reset button if safety perimeter is triggered; External power pack with overload relief valve; Compensated flow valve controls lowering speed; 8 ft hoses included with power pack; 230/460V three phase available; Single acting cylinders with drainage system; Hose burst check valve stops lowering; Scissor safety clearance prevents trapping; Mechanical maintenance blocks; Removable lifting eyes for installation Each Selection Can Be Purchased With Hand Or Foot Controls (Add -F For Foot Controls Or -H For Hand Controls To The Model Number).

Model and option notes: E-LIFT TABLE; Each Selection Can Be Purchased With Hand Or Foot Controls (Add -F For Foot Controls Or -H For Hand Controls To The Model Number).

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 27. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
