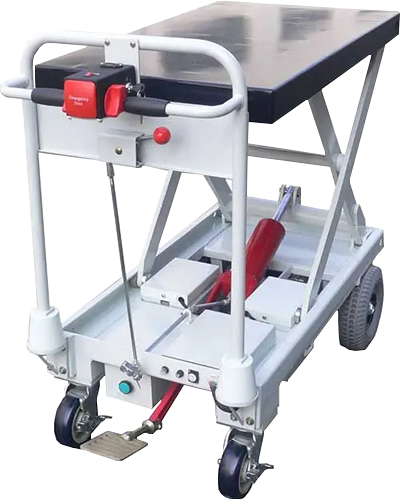

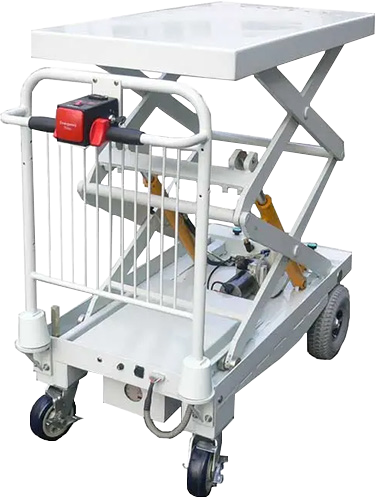

Powered Lift Carts — MCJR Series — catalog equipment photograph

Open an image to inspect its original detail.

Powered Lift Carts — MCJR Series — catalog equipment photographPowered Lift Carts — MCJR Series — catalog equipment photographPowered Lift Carts — MCJR Series — catalog equipment photograph

Specifications & options

Model / referenceVERTICAL TRAVELCAPACITYHEIGHT / LOWEREDHEIGHT / RAISEDPLATFORM SIZE / RAISEDMAX SPEED / RAISEDWEIGHT / RAISED
BM-MCJR-1K-233925”100016”41”23” X 39.4”2.8MPH498 lbs
BM-MCJR-1K-234345.5”100018.5”64”23” X 43”2.8MPH569 lbs
BM-MCJR-M-1K-233945.5”100018.1”35.4”23.6” X 36.4”2.8MPH530 lbs
Documented model configurations3
CAPACITY1000
MAX SPEED / RAISED2.8MPH
Catalog feature / option24 Volt Electrical System

Source: 2026 material handling catalog, PDF page 28. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Powered Lift Carts — MCJR Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Roller Grip Controls; Variable Speed; Adjustable Top Speed; Power Green Light; Emergency Stop Bump Switch; Horn and Key Switch; Automatic Breaking; 24 Volt Electrical System; Curtis Controls; Color: White w/Black Deck Mat; Hydraulic Foot Pump; Trapped Top & Base Rollers; Maintenance Safety Bars; (2) 33 AMP Batteries MLT ELT; On-Board UL-Charger; Free Wheel Mode; Pneumatic Non-Marking; Rubber Drive Wheels; Poly Casters; Front Wheel Transaxle Drive; Battery Gauge; Full Perimeter Bumper; Back-Up Beeper; Variable Lowering Speed.

Model and option notes: ELT.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 28. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
