SKU 7-13764
GKS Robot 40 Lift Battery powered remote controlled transport system with integrated lift table
Battery powered remote controlled transport system with integrated lift table
- Power source
- Battery powered
- Loading height
- 9.8 inch
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Load Capacity | Raised Height | Lowered Height | Std. Base & Platform | Maximum Platform | Lifting Speed | Shipping Weight |
|---|---|---|---|---|---|---|---|
| DBP30-10 | 1000 lbs | 40-3/4" | 10-3/4" | 24 x 24" | 30 x 30" | 8 sec | 470 lbs |
| DBP36-10 | 1000 lbs | 47-3/4" | 11-3/4" | 24 x 36" | 30 x 42" | 14 sec | 505 lbs |
| DBP36-15 | 1500 lbs | 47-3/4" | 11-3/4" | 24 x 36" | 30 x 42" | 20 sec | 515 lbs |
| DBP48-10 | 1000 lbs | 59-3/4" | 11-3/4" | 24 x 48" | 30 x 54" | 43 sec | 650 lbs |
| DBP48-15 | 1500 lbs | 59-5/8" | 11-5/8" | 24 x 48" | 30 x 54" | 43 sec | 700 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | DBP Portable Double-Scissor Lift Tables |
| Documented configurations | 5 |
Source: Presto General Catalog 2026, PDF page 19. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview

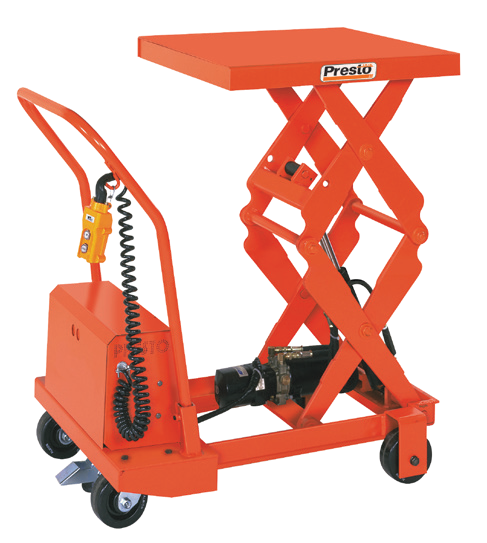

DBP tables combine a wheeled base, battery lifting and a double-scissor mechanism for elevated work positions.
Compare DBP30, DBP36 and DBP48 by deck size and actual raised height. DBP36-15, DBP48-10 and DBP48-15 use gravity lowering as identified in the catalog.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 19. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a DBP Portable Double-Scissor Lift Tables configuration?
Compare DBP30, DBP36 and DBP48 by deck size and actual raised height. DBP36-15, DBP48-10 and DBP48-15 use gravity lowering as identified in the catalog.
What should I provide for a DBP Portable Double-Scissor Lift Tables quote?
For DBP Portable Double-Scissor Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
