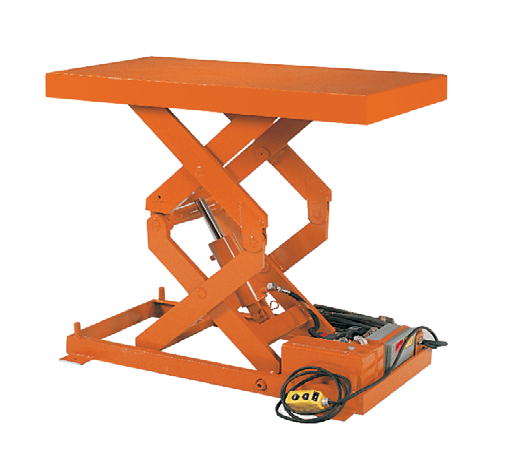

ECOA CLT Compact Double-Scissor Tables — manufacturer catalog illustration

Open an image to inspect its original detail.

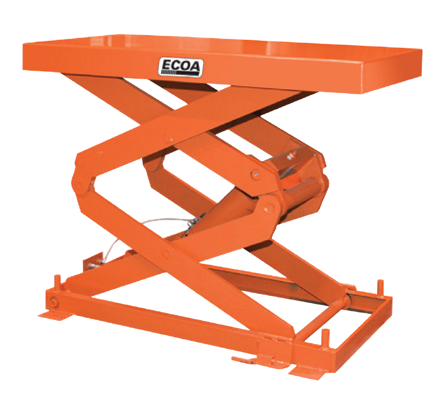

ECOA CLT Compact Double-Scissor Tables — manufacturer catalog illustration

Specifications & options

Vertical Travel (in)Model / configurationCapacity (lbs)End/Side Capacity (lbs.)Standard Platform (in)Max Platform (in)Base (in)Low Height (in)Raised Height (in)Lifting Speed (sec.)Motor (HP)Ship Weight (lbs)
36CLT-02-36-S2000100024 x 3648 x 7222½ x 358½44½15¾600
36CLT-03-36-S3000150024 x 3648 x 7222½ x 358½44½30¾650
36CLT-04-36-S4000200024 x 3648 x 7222½ x 358½44½30¾700
36CLT-05-36-S5000250024 x 3648 x 7222½ x 358½44½40¾750
36CLT-06-36-S6000300024 x 3648 x 7222½ x 358½44½40¾775
48CLT-02-48-S2000100024 x 4848 x 8422½ x 448½56½20¾650
48CLT-03-48-S3000150024 x 4848 x 8422½ x 448½56½35¾700
48CLT-04-48-S4000200024 x 4848 x 8422½ x 448½56½35¾725
48CLT-05-48-S5000250024 x 4848 x 8422½ x 448½56½80¾800
48CLT-06-48-S6000300024 x 4848 x 8422½ x 448½56½80¾825
36CLT-02-36-L2000100024 x 4848 x 7222½ x 478½44½15¾650
36CLT-03-36-L3000150024 x 4848 x 7222½ x 478½44½30¾700
36CLT-04-36-L4000200024 x 4848 x 7222½ x 478½44½30¾725
36CLT-05-36-L5000250024 x 4848 x 7222½ x 478½44½40¾800
36CLT-06-36-L6000300024 x 4848 x 7222½ x 478½44½40¾825
48CLT-02-48-L2000100024 x 6048 x 8422½ x 568½56½20¾700
48CLT-03-48-L3000150024 x 6048 x 8422½ x 568½56½35¾750
48CLT-04-48-L4000200024 x 6048 x 8422½ x 568½56½35¾775
48CLT-05-48-L5000250024 x 6048 x 8422½ x 568½56½80¾850
48CLT-06-48-L6000300024 x 6048 x 8422½ x 568½56½80¾875
ManufacturerPresto
Catalog rangeECOA CLT Compact Double-Scissor Tables
Documented configurations20
Low Height (in)8½
Motor (HP)¾

Source: Presto General Catalog 2026, PDF page 22. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

ECOA CLT tables combine compact platforms and extended travel, with short- and long-frame power-unit arrangements.

S-series frames use external power units; L-series frames use internal units. Compare base dimensions and side-load ratings. The source's platform heading misprints the unit as pounds; platform dimensions here are in inches.

Documentation & drawings

Reference: Presto General Catalog 2026, PDF page 22. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a ECOA CLT Compact Double-Scissor Tables configuration?

S-series frames use external power units; L-series frames use internal units. Compare base dimensions and side-load ratings. The source's platform heading misprints the unit as pounds; platform dimensions here are in inches.

What should I provide for a ECOA CLT Compact Double-Scissor Tables quote?

For ECOA CLT Compact Double-Scissor Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
