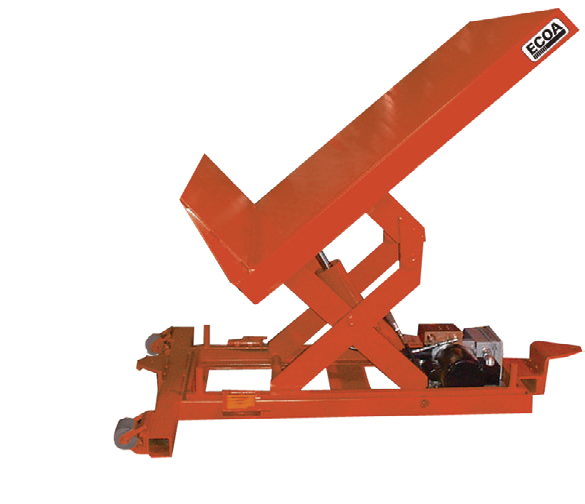

ECOA CLTLT SpaceSaver Lift-and-Tilt Tables — manufacturer catalog illustration

Open an image to inspect its original detail.

Specifications & options

Model / configurationCapacity (lbs)Standard Platform (in)Max Platform (in)Base Frame (in)Low Height (in)Lifting Speed (sec.)Motor (HP)Shipping Weight (lbs)
CLTLT-02-45200024 x 4848 x 6022½ x 4761⁄8153/4675
CLTLT-04-45400024 x 4848 x 6022½ x 4710223/4725
ManufacturerPresto
Catalog rangeECOA CLTLT SpaceSaver Lift-and-Tilt Tables
Documented configurations2
Standard Platform (in)24 x 48
Max Platform (in)48 x 60
Base Frame (in)22½ x 47
Motor (HP)3/4

Source: Presto General Catalog 2026, PDF page 29. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

CLTLT SpaceSaver raises and tilts within its base frame to reduce the operating footprint of the mechanism.

The table lists 2000 and 4000 lb models with 45° tilt. Check low height, platform and moving load center; broader capacity claims in the source description do not replace these documented rows.

Documentation & drawings

Reference: Presto General Catalog 2026, PDF page 29. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a ECOA CLTLT SpaceSaver Lift-and-Tilt Tables configuration?

The table lists 2000 and 4000 lb models with 45° tilt. Check low height, platform and moving load center; broader capacity claims in the source description do not replace these documented rows.

What should I provide for a ECOA CLTLT SpaceSaver Lift-and-Tilt Tables quote?

For ECOA CLTLT SpaceSaver Lift-and-Tilt Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
